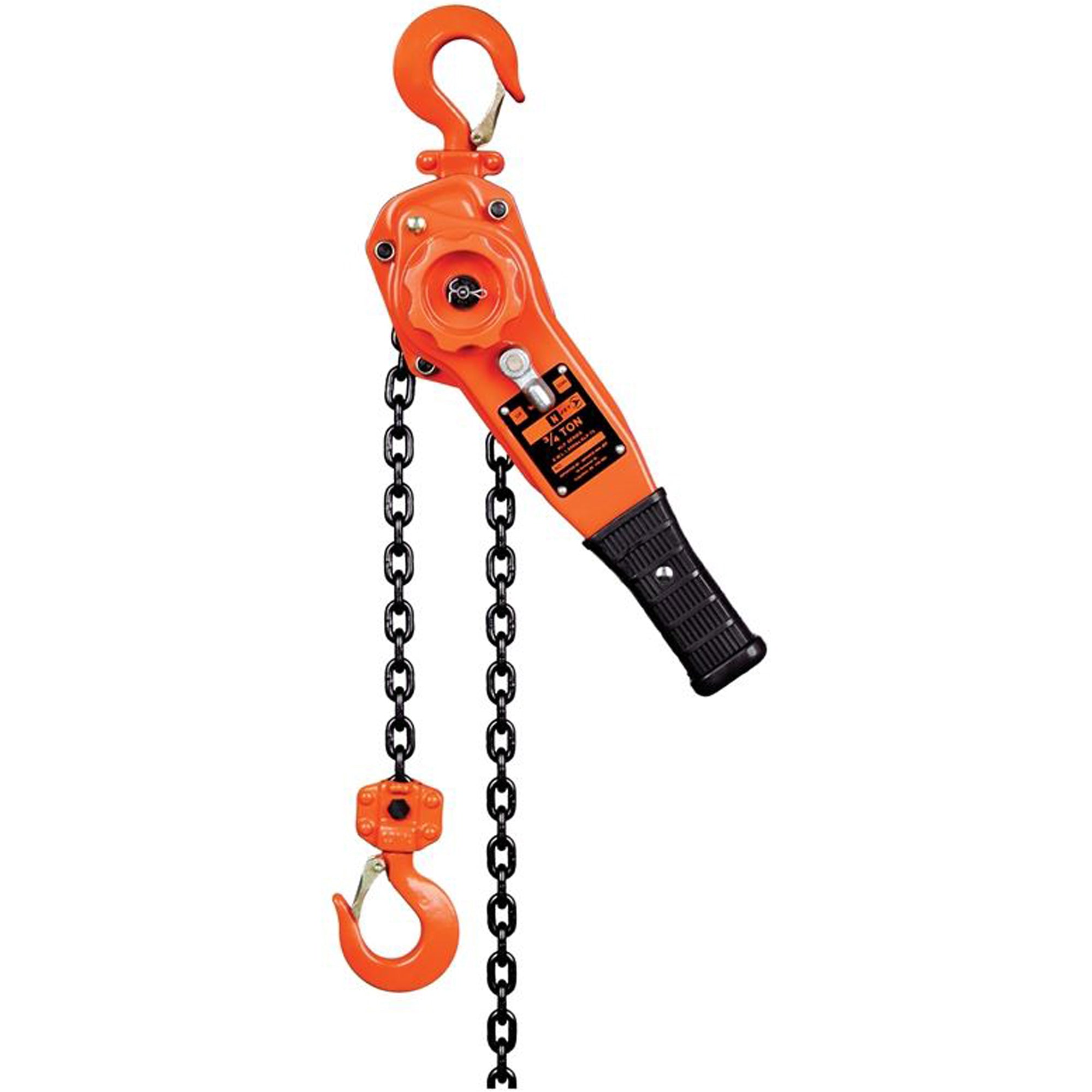

KLP Series Lever Chain Hoist
Regular price
$524.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- High impact gear case and brake cover for heavy duty service
- Caged ball bearings on load sprocket for the ultimate in smooth, easy operation
- Dual pawl Weston-style brake features extra heavy pawl springs for reliable and safe operation
- Exclusive premium grade, non-asbestos brake discs for longest life
- Top and bottom safety hooks bend to warn of overloads
- Cast steel safety latches exceed industry standards
- Deformation indicators on hooks allow accurate measurement for easy maintenance
- Load tested to 150% of rated capacity with certificate
| Capacity | 3000 lbs. (1.5 tons) |
| Force Required to Lift | 46 lbs. |
| Lever Length | 16-1/4" |
| Lift | 5' |
| Load Chain Diameter | 7.1 mm |
| Load Chain Grade | 100 |
| Min. Distance Between Hooks | 13-3/4" |
| Number of Falls | 1 |
| Standard(s) Met | ISO 9001-2000, ASME B30.21 |
| Packaged cube cu ft | 0.559 |
|---|---|
| Packaged height ft | 0.5167 |
| Packaged length ft | 1.7083 |
| Packaged weight lbs | 22.142 |
| Packaged width ft | 0.6333 |
| Shipping time | Ships in 11-14 days |
