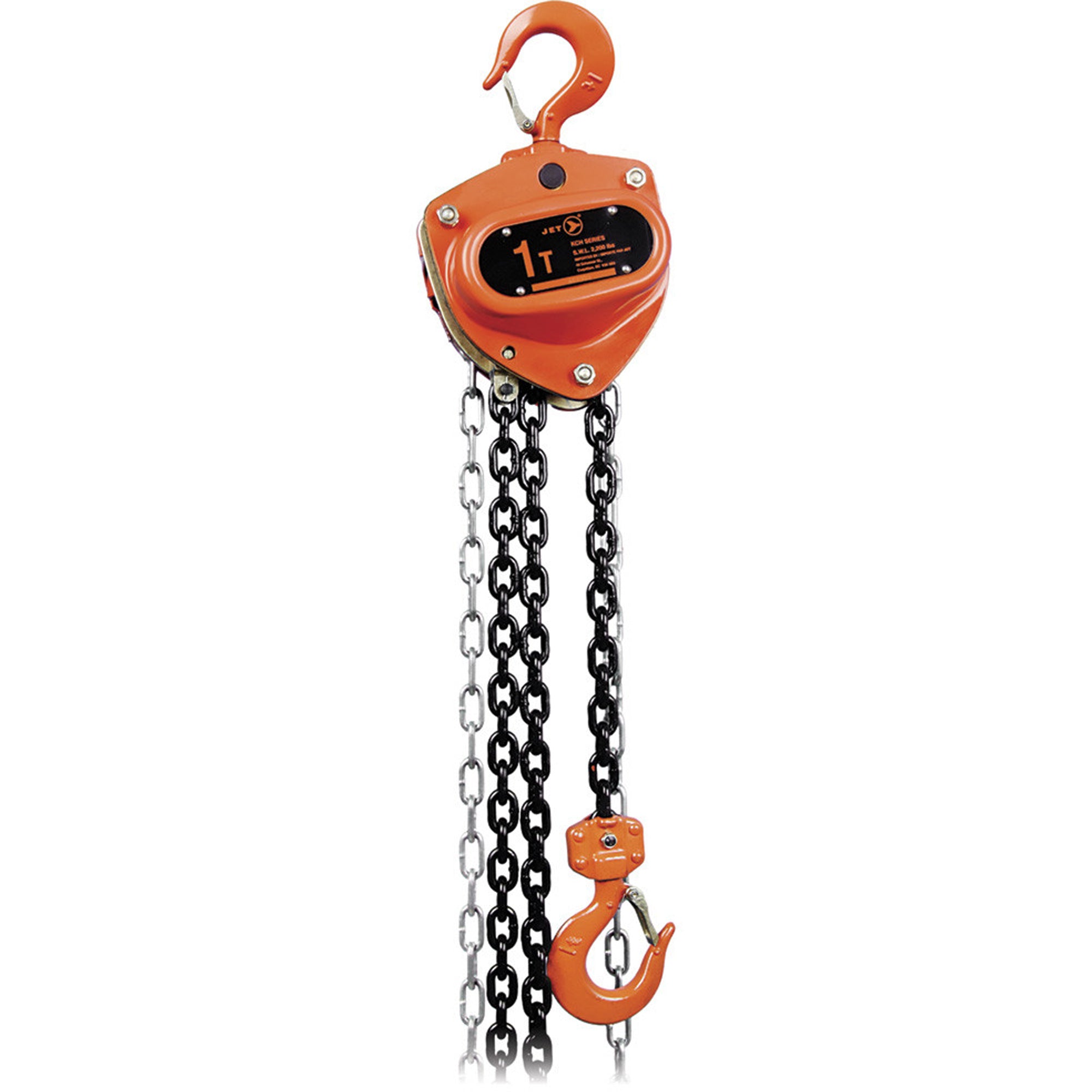

KCH Series Heavy-Duty Chain Hoist with Overload Protection
Regular price
$2,011.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Equipped with an automatic overload protection device as standard equipment (up to 5 tons)
- Device is factory preset to prevent serious overload of the hoist
- Actuation is automatic, requiring no input from the operator
- Triple spur geared for efficient operation
- Grade 100 load chain for greater strength
- Exclusive premium grade, non-asbestos brake discs for longest life
- Load tested to 150% of rated capacity with certificate
| Capacity | 11000 lbs. (5 tons) |
| Force Required to Lift | 83 lbs. |
| Head Room | 23-5/8" |
| Lift | 20' |
| Load Chain Diameter | 9 mm |
| Load Chain Grade | 100 |
| Number of Falls | 2 |
| Standard(s) Met | ISO 9001-2000, ASME B30.16 |
| Packaged cube cu ft | 0.99 |
|---|---|
| Packaged height ft | 0.75 |
| Packaged length ft | 1.2 |
| Packaged weight lbs | 122 |
| Packaged width ft | 1.1 |
| Shipping time | Ships in 11-14 days |
