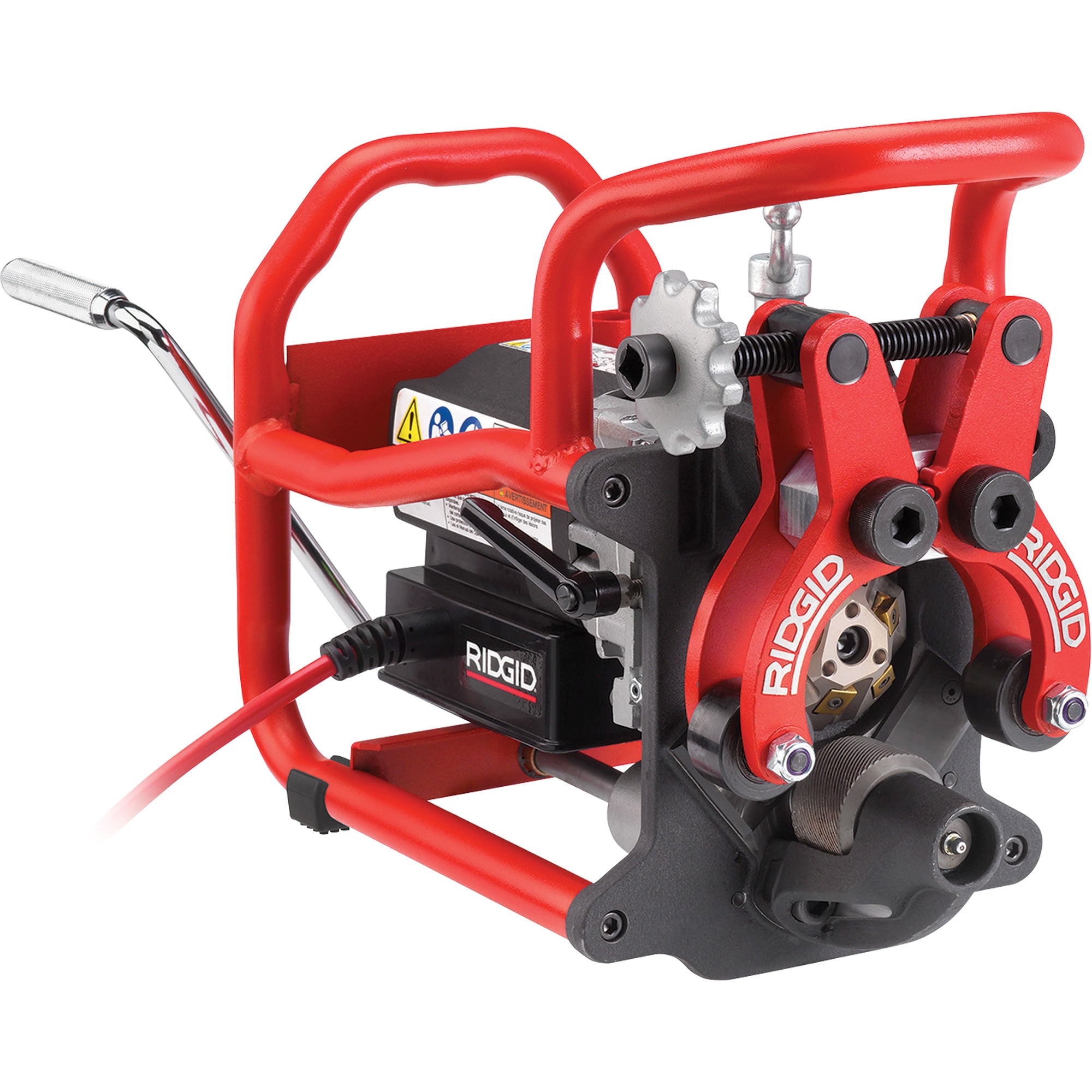

Transportable Pipe Beveller
Regular price
$10,595.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Compact design quickly mounts to pipes with a 4"" and up diameter, with a maximum wall thickness of 1/2"", and creates consistent bevels in a single pass
- Set up and bevel 10"" diameter schedule 40 pipe in 45 seconds
- Pipe is cool to touch immediately following beveling
- Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes
- Adjustable land width from 0"" to 3/16"" to fit welders' requirements
- Produces a machined finish due to 6 replaceable cutter inserts working simultaneously
- Clamp system firmly secures tool to the pipe
- Speed monitoring feature with LED indicators for optimal cutter performance
- Spark free operation
- Cutter head rated for most steel and stainless steel (optimized for standard A53 mild steel pipe)
- Includes: 37.5° Cutter head with inserts
| Capacity | 4"" Pipe & Larger Flat Plat |
| Dimensions (L x W x H) | 15.8"" x 11..5"" x 13.3"" |
| Frame Material | Steel |
| Land Width | 0"" - 3/16"" in 1/32"" Increments |
| No Load RPM | 950 |
| Pipe Wall/Plate Thickness | 4.8 mm - 12.7 mm |
| Voltage | 115 V |
| Packaged cube cu ft | 1.7856 |
|---|---|
| Packaged height ft | 0.9167 |
| Packaged length ft | 1.4167 |
| Packaged weight lbs | 58.49 |
| Packaged width ft | 1.375 |
| Shipping time | Ships August 2026 |
