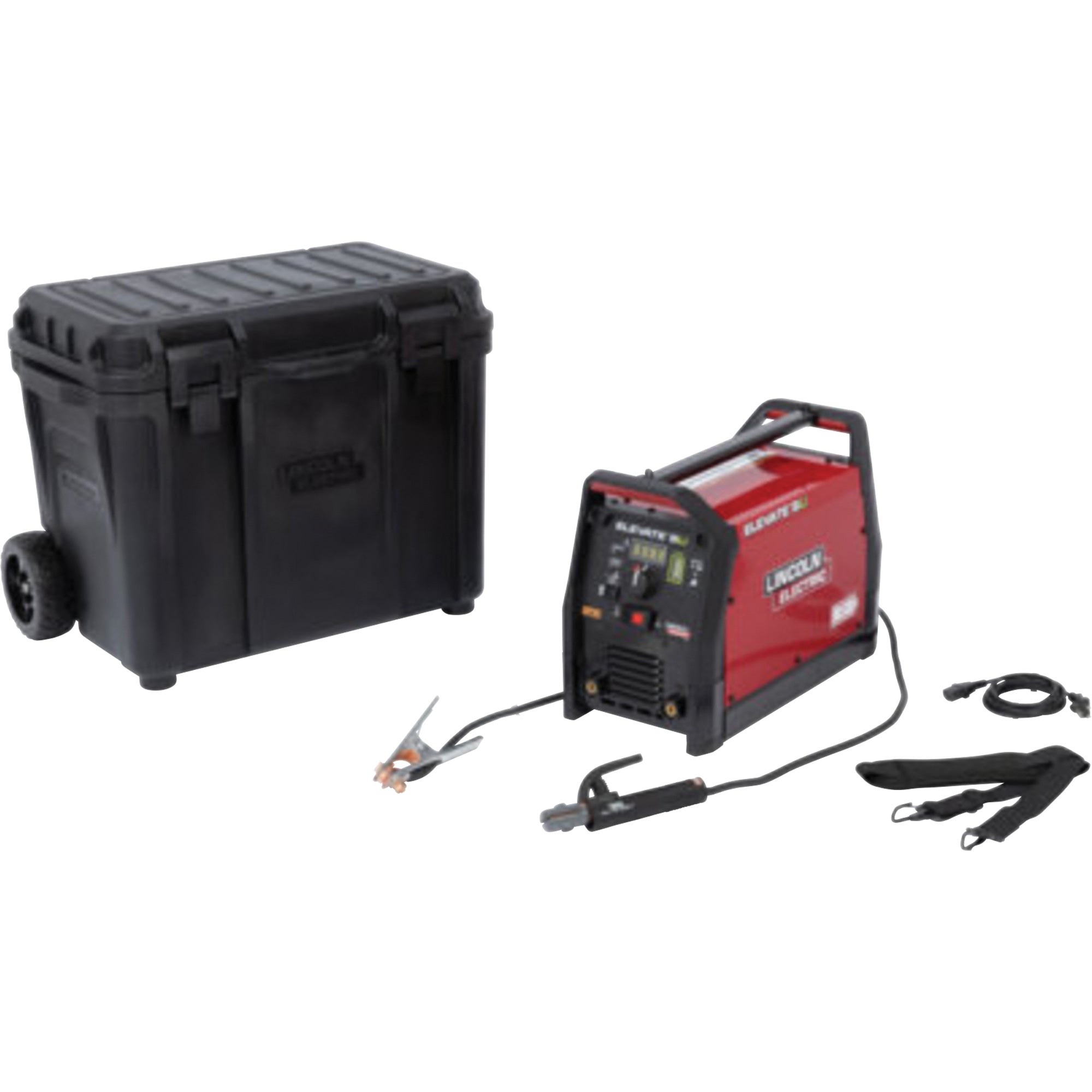

Elevate™ SLi Battery Powered Welder with Rolling Case Package
Regular price
$7,832.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Provides a powerful 145A output for highly efficient welding
- Ensures easy starts, a smooth arc, low spatter, and optimal bead appearance
- Supports a wide range of welding rods, including 6010 and 7018 up to 5/32 in, and features Touch Start TIG functionality
- Hot Start and Arc Force can be adjusted to improve electrode starting and control penetration profile
- Designed for easy transportation, weighing only 33 lbs. and featuring an adjustable shoulder strap for added convenience
- Easily maneuverable on job sites and does not require extra-long weld cables or a generator, making it an excellent option for remote work locations
- Employs Lithium Iron Phosphate technology to offer extended battery life, enabling the welding of up to 21 sticks on a single charge
- The integrated internal charging system can charge in 60 minutes using 120V input power, eliminating the need for an external charger
- Built to withstand challenging welding environments with an IP23S rating and fan as-needed circuitry, ensuring long-lasting performance
- Backed by a 3-year warranty from Lincoln Electric, providing peace of mind and reliable support for your investment
| Battery Type | Lithium Iron Phosphate (LiFePO4) Battery |
| Charge Time | 60 minutes |
| Dimensions | 14"" H x 9.1"" W x 18.3"" D (356 mm x 231 mm x 465 mm) |
| Hertz Input Power | 60 Hz |
| Includes | Elevate™ SLi Battery Powered Welder; 200 Amp Industrial Electrode Holder with Cable 12.5 ft (3.8 m) & Twist Mate™ (Dinse 10-25) Connector (K5612-1); Work Lead 12.5 ft (3.8 m) with Ground Clamp & Twist Mate™ (Dinse 10-25) Connector (K5482-1); Adjustable Shoulder Strap (KP5656-1); 120V Input Cord 7.5 ft (2m) (KP5655-1); Elevate™ SLi Battery Powered Welder Rolling Machine Case (K5548-1) |
| Machines Processes | Stick (SMAW), TIG (GTAW) |
| Open Circuit Voltage | Average: 55V, Peak: 72V |
| Output Range | Stick: 10-145A, TIG: 4-145A |
| Phase Input Power | 1 Ph |
| Polarity | DC |
| Voltage Input Power | 120 V |
| Weight | 33 lbs. (15 kg) |
| Packaged cube cu ft | 6.327 |
|---|---|
| Packaged height ft | 2.0417 |
| Packaged length ft | 1.4583 |
| Packaged weight lbs | 45 |
| Packaged width ft | 2.125 |
| Shipping time | Ships in 11-14 days |
