Square Wave® 205 TIG Welder
Regular price
$3,126.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- For a wider or tighter welding bead, users can easily adjust AC Frequency Control
- AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration on thick materials
- The multi-process machine can TIG weld when precision and bead appearance are important
- Users also have the advantage of stick welding capability for outdoor work or thicker materials
- Plug in the Square Wave 205 where you need it - a standard 120V circuit or 230V for maximum output
- Portable and convenient to use, only 36lbs (16 kg)
| Amphenol Pins | 6 |
| Applications | Automotive, Brewery, Distillery, General Fabrication, Maintenance & Repair |
| Dimensions | 18.5"" H x 8"" W x 13"" D (470 mm x 203 mm x 330 mm) |

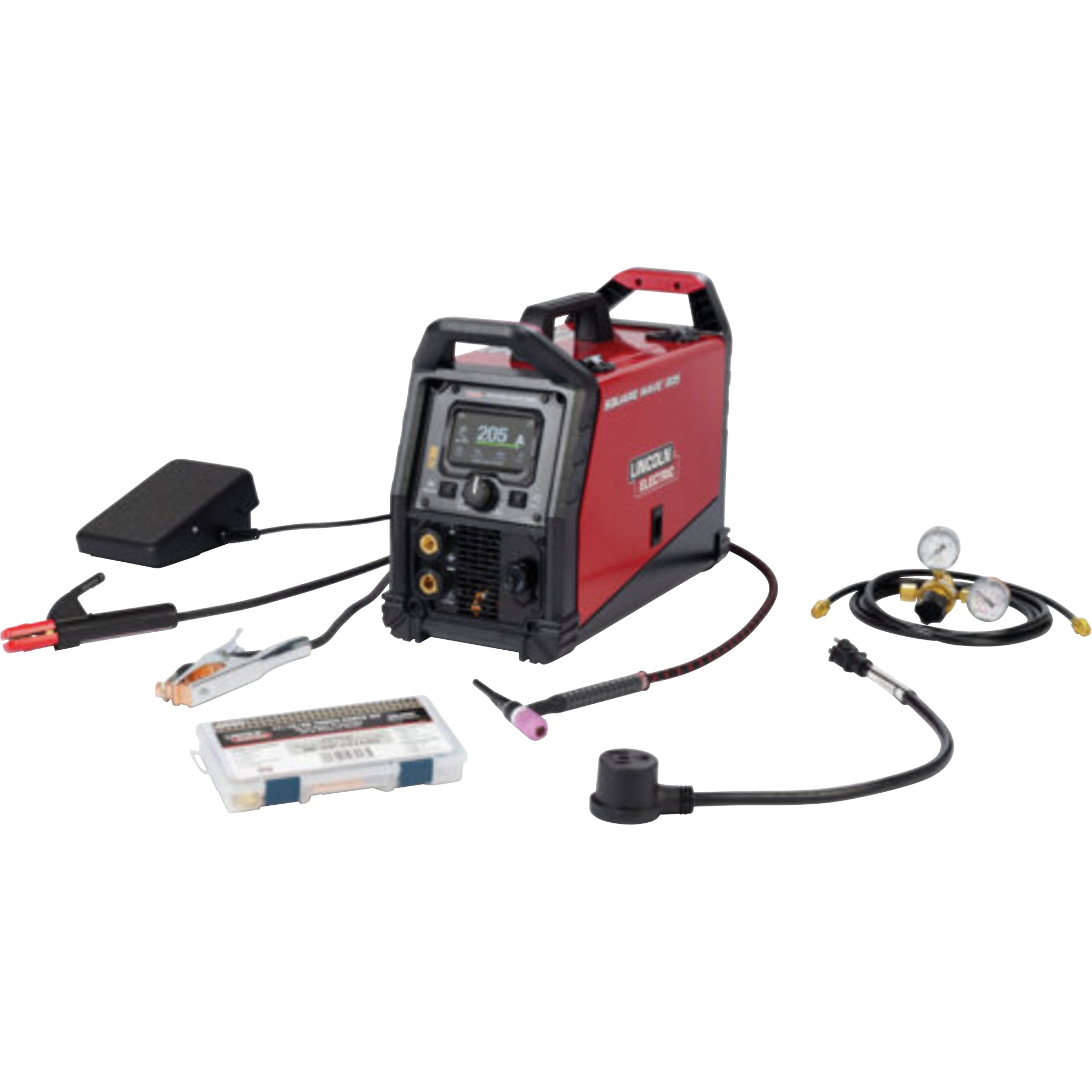

| Includes | Square Wave 205 TIG Welder; K5339-17F-1 Caliber 17 TIG Torch Ready-Pak®; K870 Foot Amptrol™; Gas Regulator/Flowmeter & 10 ft (3 m) Gas Hose Kit; Stick Electrode Holder 200A; Ground Clamp & Cable; 120 & 230V Adapter; Caliber® 17/18/26 Series TIG Torch Expendables Kit - 0.040""-3/32"" (KP4760-MD); Caliber® 17 Series TIG Torch Ready Pak - Rigid, 12.5 ft. (3.8 m) (K5339-17-1); Model 601-Ar5-30-580 Single-Stage Flow gauge Regulator (3000369); Foot Amptrol™ - 25 ft (7.6m) (6 pin) (K870) |
| Machines Processes | Stick (SMAW), TIG (GTAW) |
| Manufacturer's Warranty | 3 Years |
| Phase Input Power | 1 Ph |
| Voltage Input Power | 120 V/230 V |
| Weight | 36 lbs. (16 kg) |
| Work Cable Length | 10' |
| Work Lead Connector Type | Dinse |
| Packaged cube cu ft | 2.9919 |
|---|---|
| Packaged height ft | 1.6667 |
| Packaged length ft | 1.9583 |
| Packaged weight lbs | 63 |
| Packaged width ft | 0.9167 |
| Shipping time | Ships in 11-14 days |
