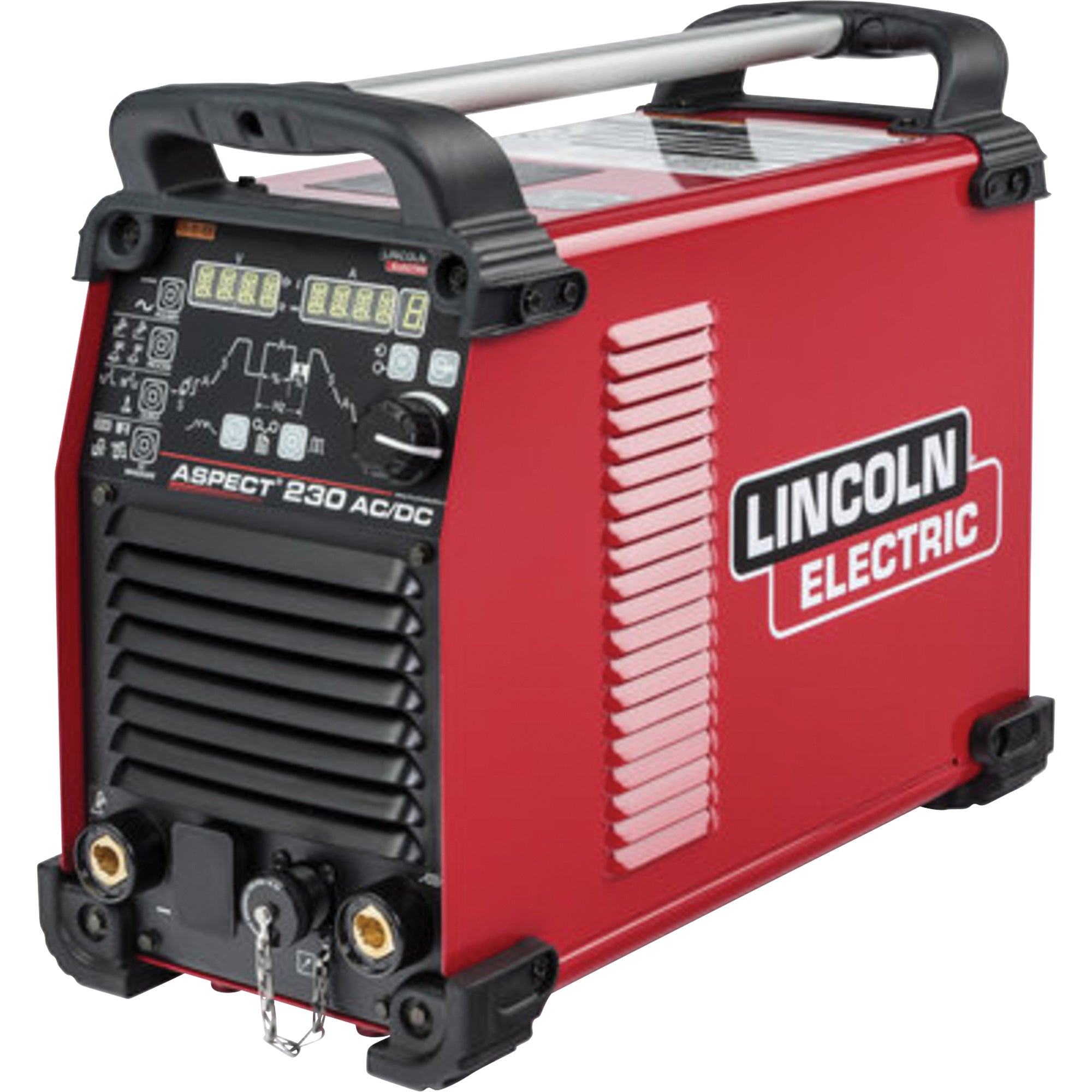

Aspect® 230 AC/DC TIG Welder - TTV834
Aspect® 230 AC/DC TIG Welder - TTV834

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Lincoln Electric

Aspect® 230 AC/DC TIG Welder

SKU: TTV834
(0)
$8,851.00 For better pricing, click here
Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
In stock
Ships in 11-14 days

Got questions?

Feel free to get in touch

Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
  • An inverter-based arc welding power source optimized for AC/DC TIG and Stick welding
  • A true professional's choice with advanced waveforms, full sequencer and pulse controls, this machine will deliver the arc you need
  • All your desired features can be easily customized to your application and saved in the available memory settings
  • With up to 230 Amps of maximum output you can TIG weld aluminum up to 1/4
  • Portable, lightweight, and easy to transport
  • Save critical weld set up information in up to 9 memory locations
  • PowerConnect® Technology 120-460V input power
Applications Automotive, Brewery, Distillery, Maintenance & Repair, Marine Applications, Marine Fabrication & Repair, Repair Welding, Shipbuilding
Dimensions 16.5"" H x 9.7"" W x 19.9"" D (419 mm x 246 mm x 506 mm)
Hertz Input Power 50/60 Hz
Includes Aspect® 230 AC/DC TIG Welder; 10 ft. (3m) Input Power Cord
Input Current 120V: 21A, 208/230/460V: 11A/10A/5A
Input Power 120/1/50/60-460/1/3/50/60
Manufacturer's Warranty 3 Years
Output Range 120V: 2-150A TIG, 208/230/460V: 2-230A
Phase Input Power 1 Ph/3 Ph
Polarity AC/DC
Voltage Input Power 120 V/460 V
Weight 50.5 lbs. (22.907 kg)
Packaged cube cu ft 4.213
Packaged height ft 1.6667
Packaged length ft 2.1667
Packaged weight lbs 50.5
Packaged width ft 1.1667
