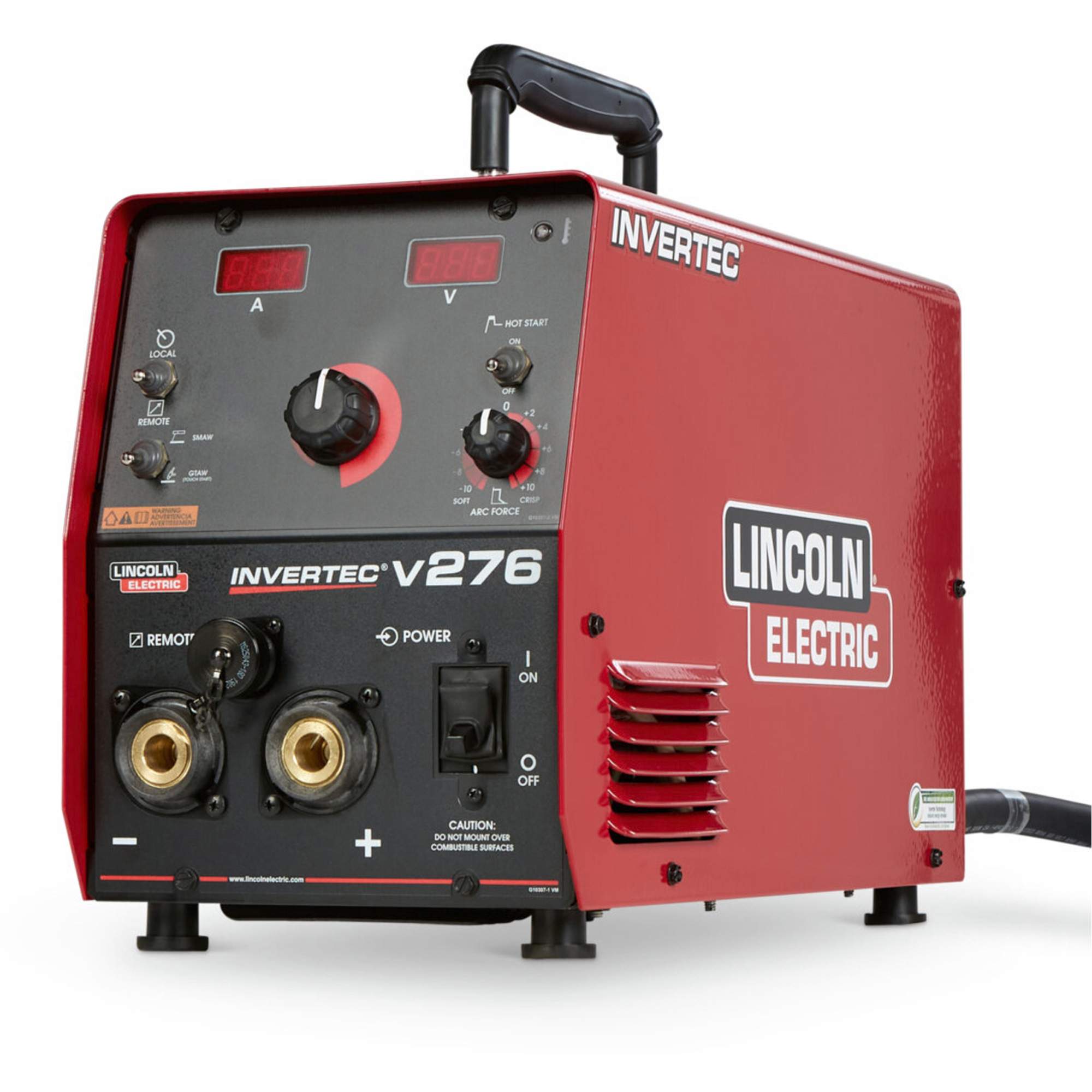

Invertec® V276 Stick & TIG Power Source - TTV758
Invertec® V276 Stick & TIG Power Source - TTV758

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Lincoln Electric

Invertec® V276 Stick & TIG Power Source

SKU: TTV758
(0)
$8,191.00 For better pricing, click here
Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
In stock
Ships in 11-14 days

Got questions?

Feel free to get in touch

Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
  • Ideal for outdoor construction applications
  • This small package delivers outstanding performance on a wide range of electrode types and sizes
  • Built rugged enough to handle the toughest construction sites
  • Outstanding AWS E6010 and E7018 performance - using up to 7/32 in. (5.5 mm) diameter electrode that enables both whip and drag techniques
  • Touch Start TIG® allows the welding arc to be established without high frequency starting
  • Air carbon arc cutting and gouging - with up to 3/16 in. (4.8 mm) diameter carbon electrode
  • Selectable Hot Start Turn it on for an extra boost of output to help you fire off and prevent sticking to the work piece
Dimensions (H x W x D) 13.6"" x 9"" x 20.25"" (345 mm x 229 mm x 514 mm)
For Use With Construction, Construction & Field Erection, Maintenance & Repair, Repair Welding, Structural Fabrication, Structural Welding
Hertz Input Power 50/60 Hz
Includes Invertec V276 Power Source, 10 ft. Input Power Cable
Manufacturer's Warranty 3 Years Standard
Output Range 20-275 A
Phase Input Power 1 Ph/3 Ph
Rated Output 275A/31V/35%, 250A/30V/60%, 200A/28V/100%
Voltage Input Power 230 V/208 V/380 V/415 V/460 V/575 V
Weight 54 lbs. (24.49 kg)
Work Lead Connector Type Tweco
Packaged cube cu ft 4.4074
Packaged height ft 1.4167
Packaged length ft 1.3333
Packaged weight lbs 64
Packaged width ft 2.3333
