Home » Tomahawk® 45 Plasma Cutter with 20' Hand Torch

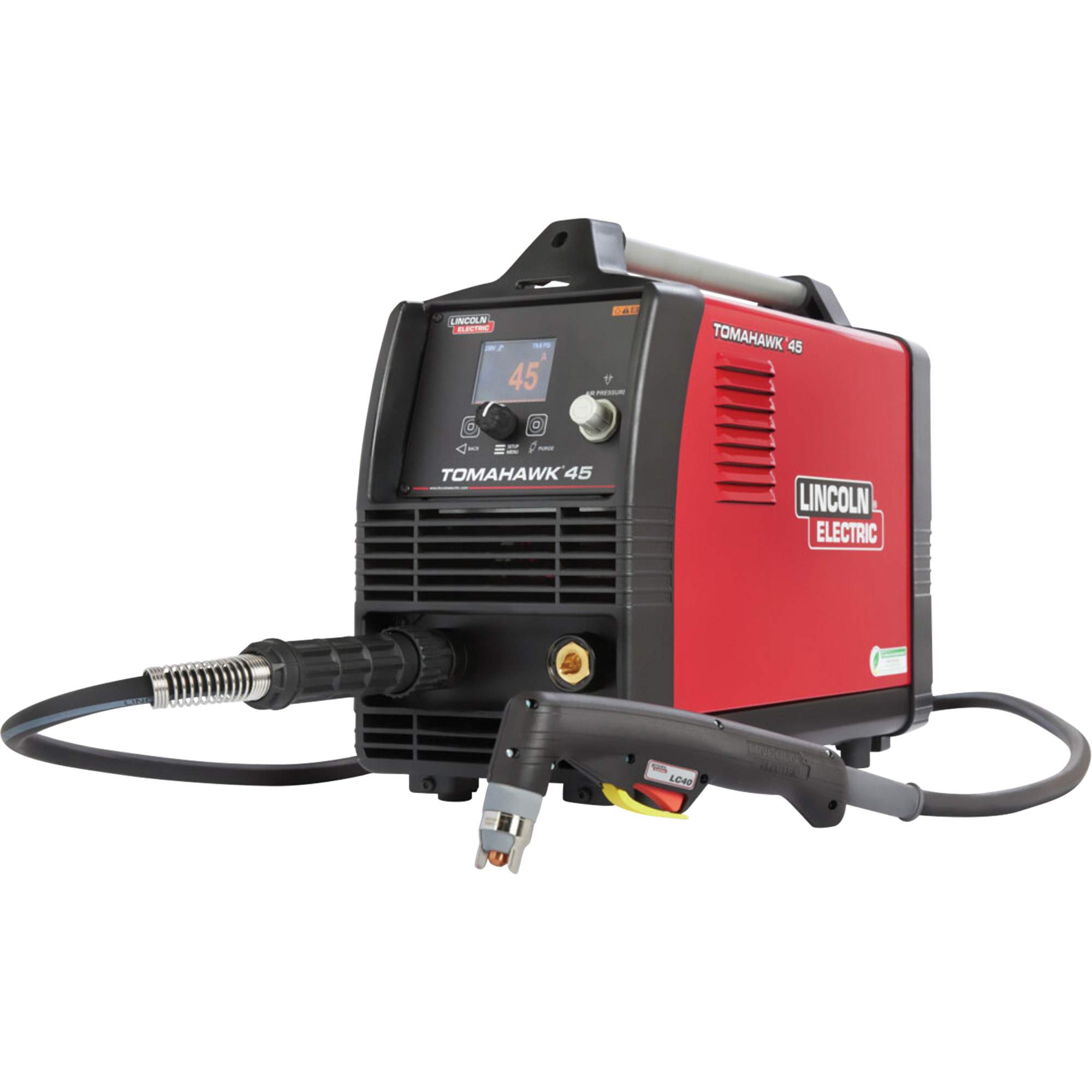

Tomahawk® 45 Plasma Cutter with 20' Hand Torch - TTV732
Tomahawk® 45 Plasma Cutter with 20' Hand Torch - TTV732

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Lincoln Electric

Tomahawk® 45 Plasma Cutter with 20' Hand Torch

SKU: TTV732
(0)
$4,941.00 For better pricing, click here
Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
In stock

Got questions?

Feel free to get in touch

Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
  • Portable for plasma cutting and gouging on a wide variety of materials including mild steel, stainless steel, aluminum, brass, and copper
  • Lightweight and Portable – Easily carried by one person
  • Continuous Output Control – Focus the arc for different material thickness
  • Touch Start System – Reliable plasma arc initiation without high frequency
  • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal
  • Cool Operation, Long Consumable Life - Enhanced swirling airflow keeps the electrode and tip cool and increases the life of consumables
  • Added Safety – The Parts-in-Place system detects correct installation of consumables and torch
  • Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations
Gas Pressure Required 80 - 110 PSI (6 -7.5 Bar)
Gas Supply Air or Nitrogen
Hertz Input Power 60 Hz
Includes (1) Tomahawk 45 Plasma Cutter; (1) K2847-1 LC40 Hand Torch 20 ft Cable; (3) KP2843-1 Electrode; (3) KP2843-2 Nozzle 40A; (2) KP2842-4 Swirl Ring; (1) KP2843-5 Retaining Cap (Standard); (1) KP2843-2 Drag Spacer; (1) Air Regulator and Pressure Gauge; (1) Internal Water Separator; (1) Work Clamp and Cable; (1) Shoulder Strap; (1) Input Power Cord
Input Current at Max Rated Ouput #1 23A
Machines Processes Plasma Cutting & Plasma Gouging
Max Rating 45A
Phase Input Power 1 Ph
Rated Output #1A (Current/Voltage/Duty Cycle) 30A/92V/100%
Rated Output #1B (Current/Voltage/Duty Cycle) 40A/96V/60%
Rated Output #1C (Current/Voltage/Duty Cycle) 45A/98V/45%
Voltage Input Power 230 V
Packaged cube cu ft 1.4131
Packaged height ft 1.575
Packaged length ft 1.2667
Packaged weight lbs 34
Packaged width ft 0.7083

Order Processing Orders are processed within 2 business days. Orders placed before 2:00 PM PST typically ship within 2 business days. Orders placed after 2:00 PM PST or on weekends/holidays begin processing the next business day.

Local Pickup — FREE Pick up your order at our Delta warehouse at no charge.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
