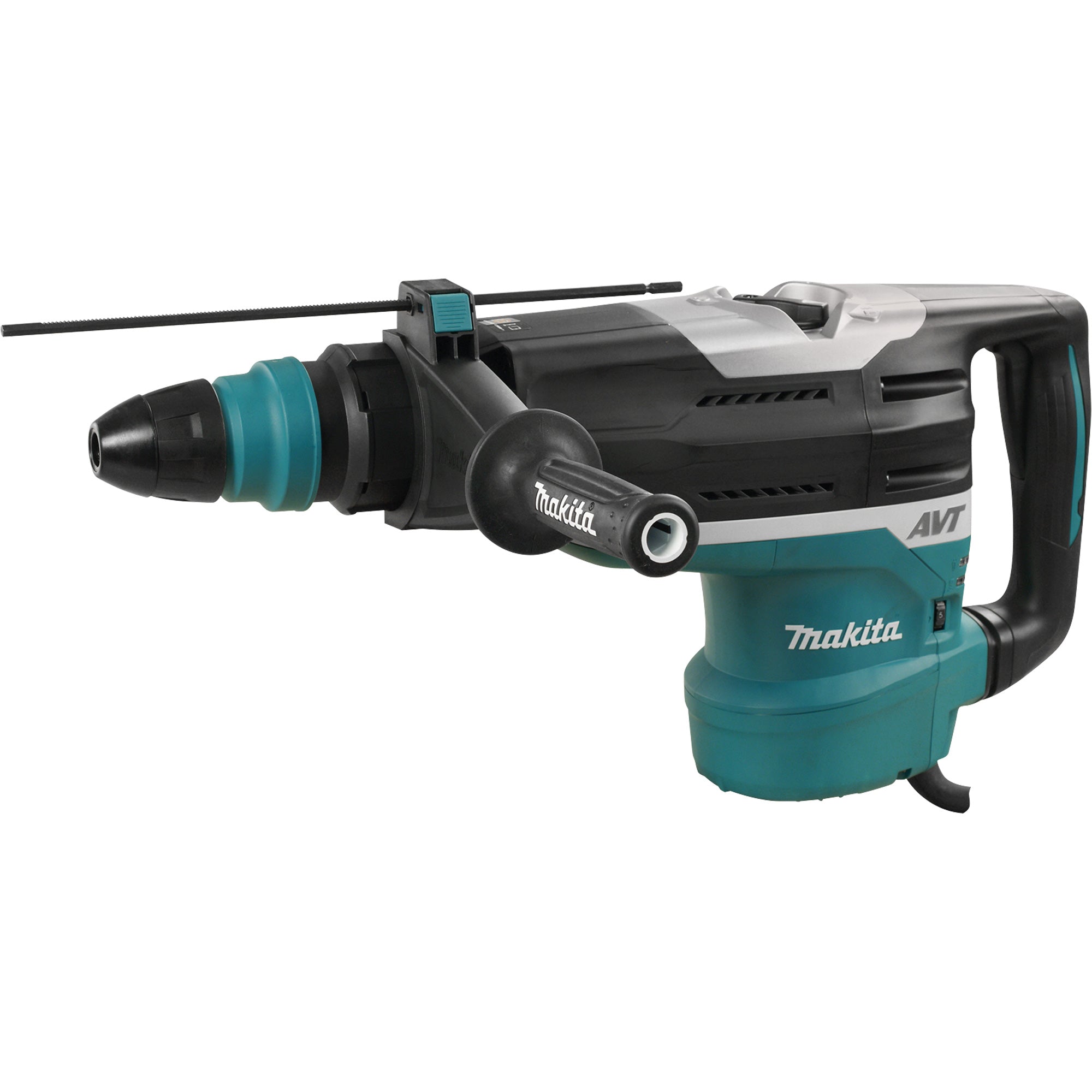

Advanced AVT® SDS-Max Rotary Hammer

SKU: TNB431
Regular price $1,709.00 For better pricing, click here
Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
In stock

Got questions?

Feel free to get in touch

Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
  • Advanced Anti-Vibration Technology (AVT®) is a synchronized, three-component system that more effectively reduces vibration resulting in a low 5m/s²
  • Air actuated counterbalance that directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the hammer mechanism to effectively reduce vibration
  • Vibration-absorbing housing with a spring loaded back handle and housing which moves independently of the motor and hammer mechanism effectively isolating more vibration away from the user
  • Integrated damper spring at the base of the impact bolt engineered to absorb impact vibrations from the drill bit
  • Constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
  • Soft start suppresses start-up reaction for more precision and better accuracy
  • "Soft no-load" function automatically reduces the speed of the motor when idling to help increase tool life and performance
  • Variable speed control dial enables user to match the speed to the application for greater versatility
  • Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
  • Sequential impact timing delivers timed hammering during rotation to minimize overlapping bit impacts for up to 50% faster drilling
  • LED power light indicates switch failure or cord damage
  • LED service light notifies the user approximately 8 hours before the brushes need to be replaced
  • Automatic brush cut-off protects commutator from damage for longer tool life
  • 2-mode operation for "Chipping Only" or "Hammering with Rotation"
  • 24 bit angle settings allow the bit to be set at different positions for operating convenience
  • One-touch sliding chuck for quick bit changes
  • Features a 16.4' power cord for user convenience
Amps 15 A
Cord Length 16.4'
Impact Energy 14 ft.-lbs.
Net Weight 41.9 lbs.
No Load BPM 1100-2250
No Load RPM 130-260
Noise Level 101 dB(A)
Overall Length 32-1/2"
Vibration Level 7 m/s²
Packaged cube cu ft 2.7339
Packaged height ft 0.7812
Packaged length ft 1.5625
Packaged weight lbs 42.2
Packaged width ft 2.2396
