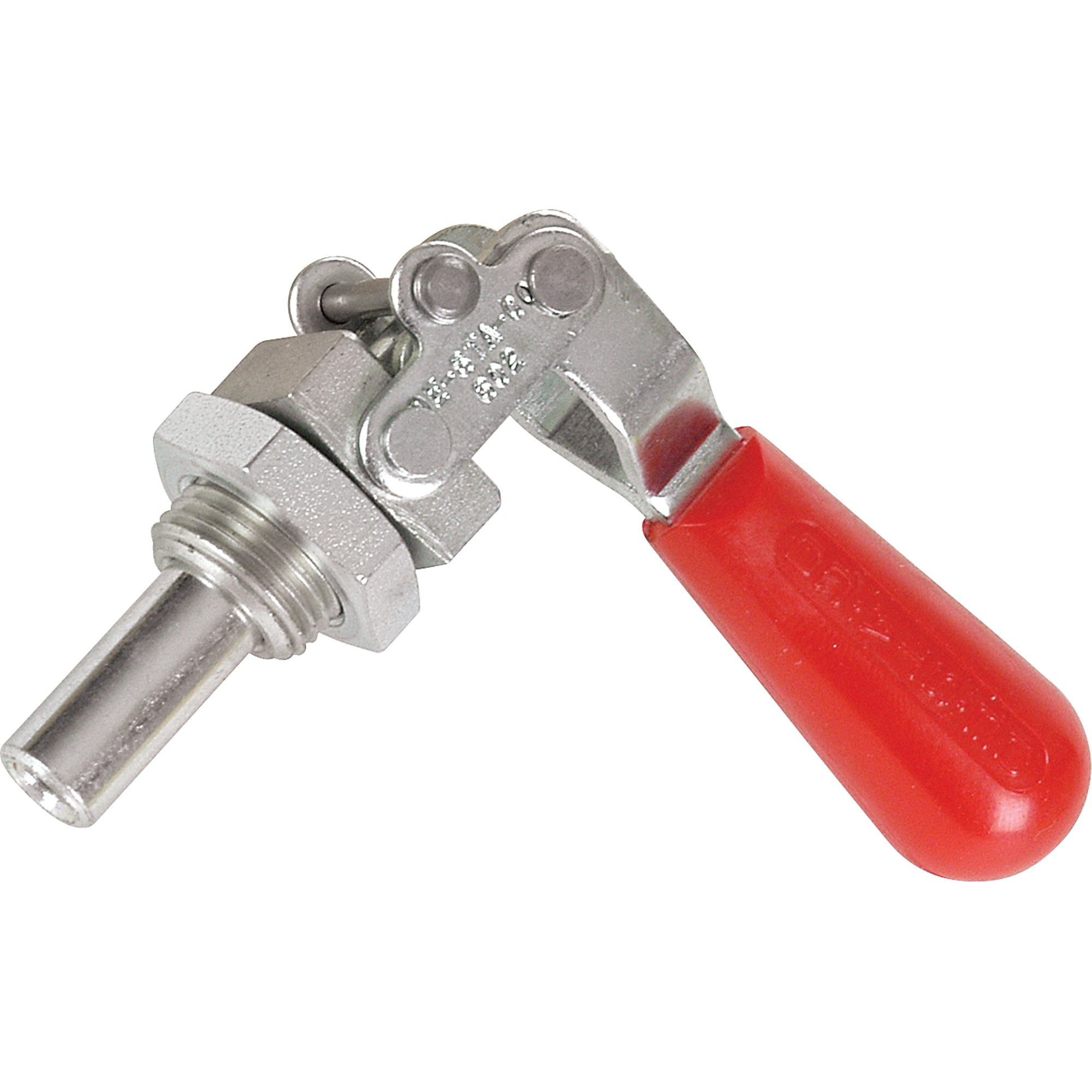

Straight Line Clamps - 604 Series
Regular price
$75.70
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Popular in assembly operations or used in conjunction with welding jigs. Straight line clamps provide quick, strong holding force. Most clamps lock in two positions allowing them to be used as a push or pull clamp. Fully retractable locators mount directly through a member by a jam nut on the work side or flush by drilling and tapping the member, a flat surface is not required. Locks in extended or retracted position. When flush-mounted, plunger completely retracts from work area.
| Clamping Capacity | 1-1/2" (38.1 mm) |
| Clamping Force | 300 lbs. |
| Dimensions" A | 4.0625 |
| Dimensions" B | 4.9375 |
| Weight | 0.44 lbs. |
| Packaged cube cu ft | 0.015 |
|---|---|
| Packaged height ft | 0.2467 |
| Packaged length ft | 0.2467 |
| Packaged weight lbs | 0.6026 |
| Packaged width ft | 0.2467 |
| Shipping time | Ships in 3-6 days |
