Straight Line Clamps - 603 Series
Regular price
$85.70
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.

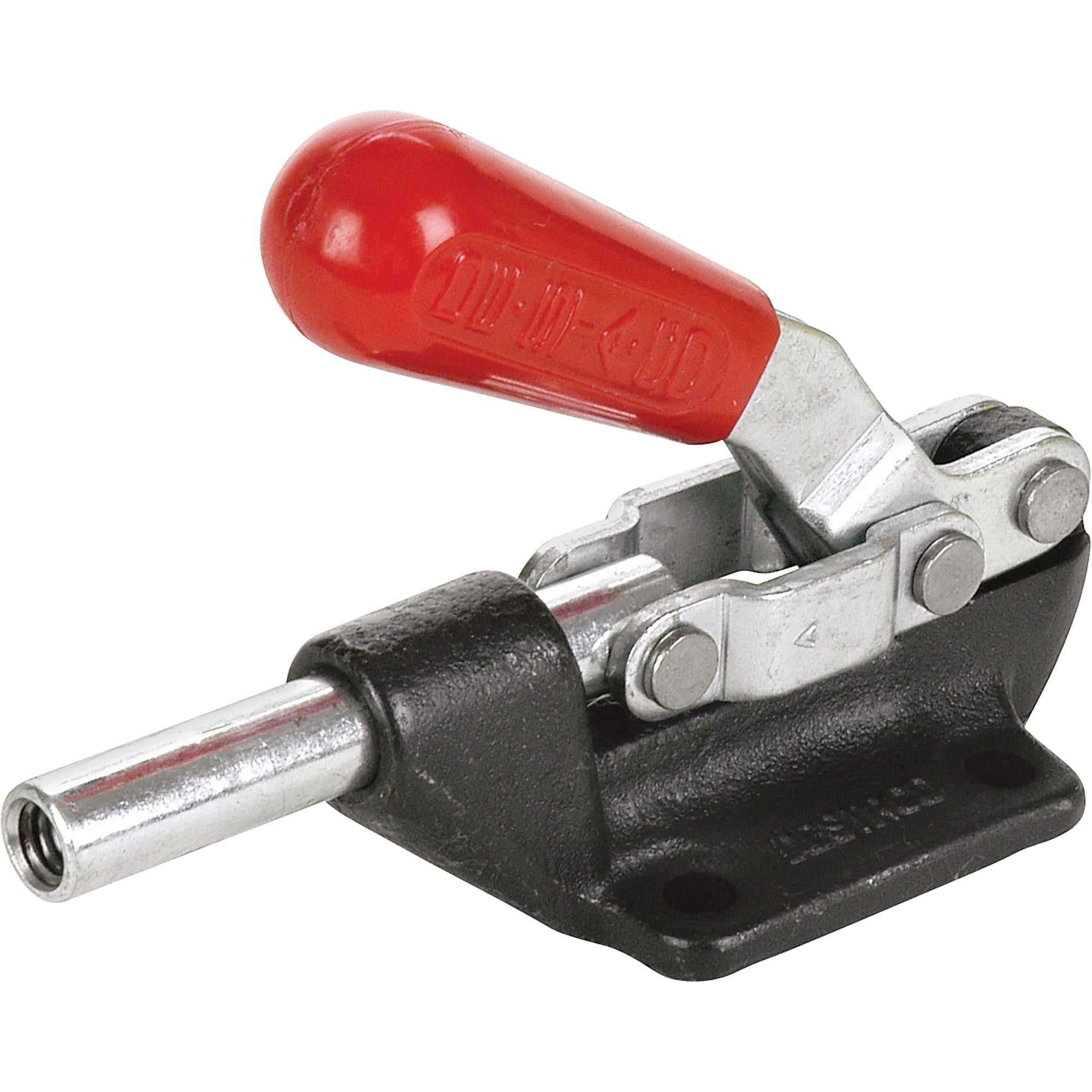

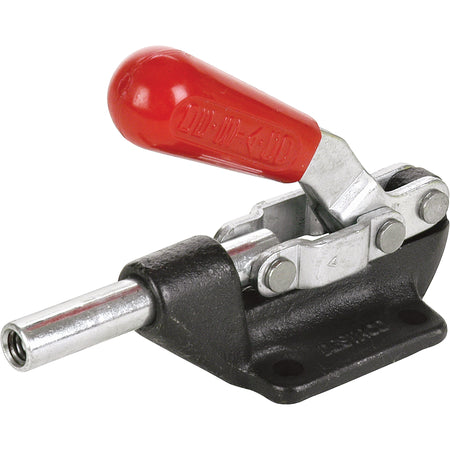

- Popular in assembly operations or used in conjunction with welding jigs. Straight line clamps provide quick, strong holding force. Most clamps lock in two positions allowing them to be used as a push or pull clamp. These models can be bolted or welded to a flat surface. Plungers extend out to clamp material against a fence or square surface. Model TN103 includes a 8-32 nylon spindle assembly (TN126). Model TN105 plunger is tapped for 5/16-18 adjustment spindle (not provided). Model TN107 plunger is tapped for 5/16-18 neoprene tip or other custom fixture.
| Base L" x W" | 2 x 1 7/8 |
| Clamping Capacity | 1-1/4" (31.75 mm) |
| Clamping Force | 600 lbs. |
| Dimensions" A | 3.5 |
| Dimensions" B | 4.5 |
| Dimensions" C | 31/32 |
| Weight | 0.83 lbs. |
| Packaged cube cu ft | 0.0162 |
|---|---|
| Packaged height ft | 0.253 |
| Packaged length ft | 0.253 |
| Packaged weight lbs | 0.9241 |
| Packaged width ft | 0.253 |
| Shipping time | Ships in 11-14 days |
