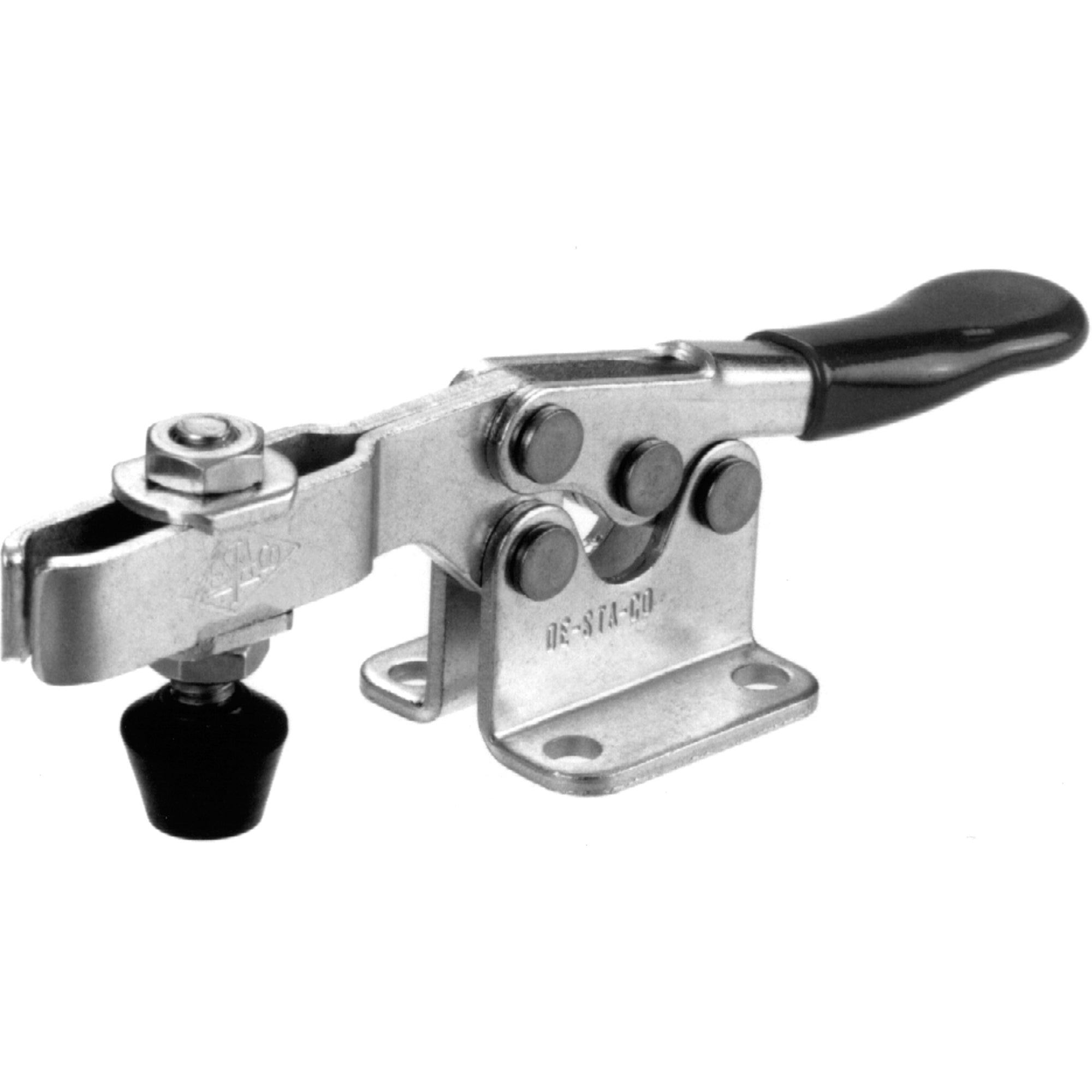

Horizontal Hold-Down Clamps - 225 Series
Regular price
$49.60
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Low height design makes clamps outstanding when headroom is a concern. Unlike the handle on the vertical clamp, the horizontal clamp moves in the opposite direction. Hold down bar available in solid or U-shaped format. Some models available in stainless steel on request. Holding capacities to 500 lbs. Larger capacities available. U-bar horizontal clamps provide greater rigidity and overall performance. The 215 Series includes a 1/4-20 bonded neoprene-tipped spindle assembly (TN134) and washers (TN123). The 225 Series includes a 5/16-18 bonded neoprene spindle assembly (TN135) and flanged washers (TN125).
| Base L" x W" | 1 1/2 x 1 3/8 |
| Clamping Force | 500 lbs. |
| Dimensions" A | 1.875 |
| Dimensions" B | 6.59375 |
| Dimensions" C | 1.34375" |
| Dimensions" D | 1.375" |
| Style | Horizontal |
| Weight | 0.55 lbs. |
| Packaged cube cu ft | 0.0193 |
|---|---|
| Packaged height ft | 0.3167 |
| Packaged length ft | 0.4583 |
| Packaged weight lbs | 0.55 |
| Packaged width ft | 0.1333 |
