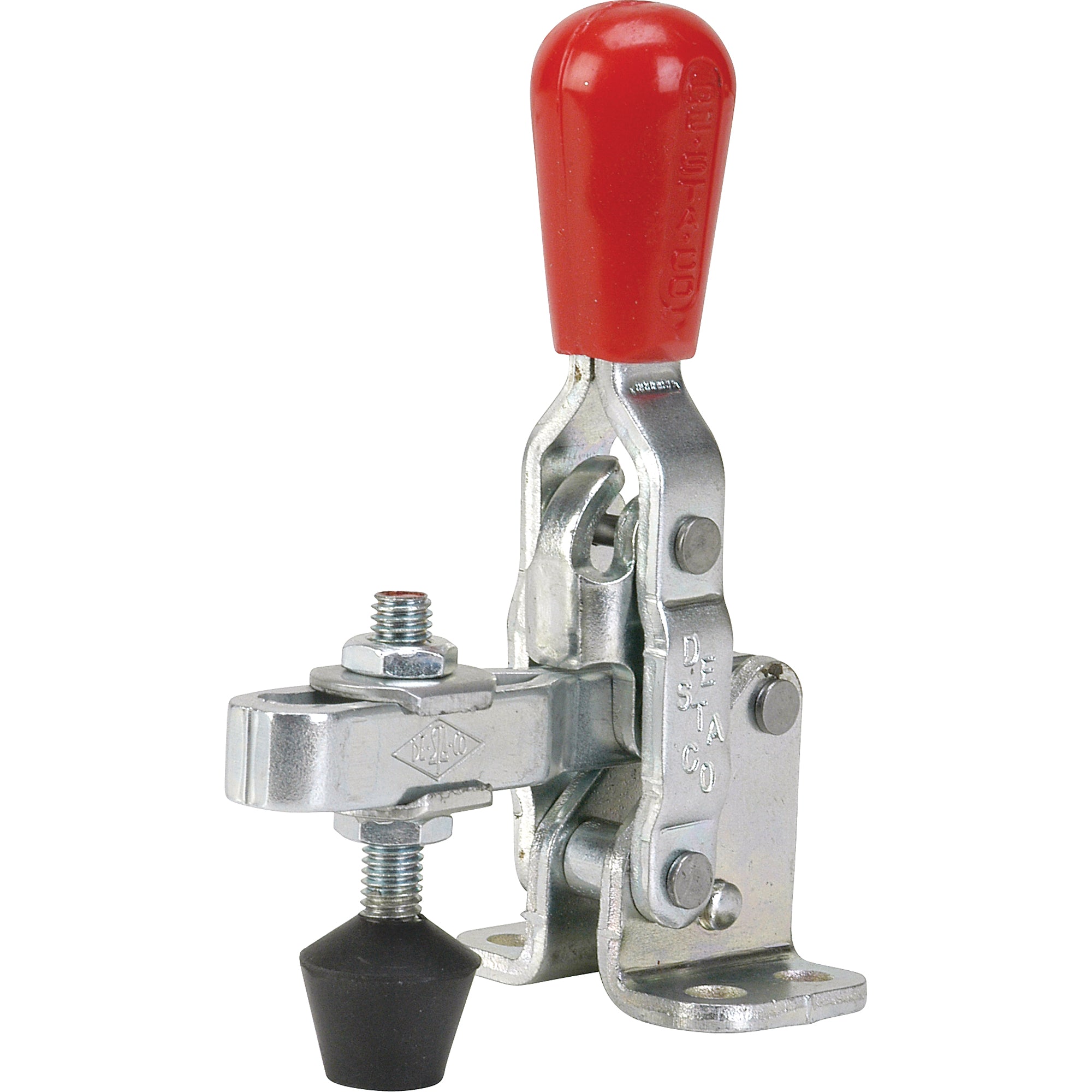

Vertical Hold-Down Clamps - 202 Series
Regular price
$46.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- The most popular type of hold-down clamp, manufactured in capacities of up to 6000 lbs. The hold-down bar exhibits a minimum 90° opening angle and can be solid or U-shaped. Stainless steel units are available for the food industry or corrosive environments. 200-lb. capacity version of 201 series. Furnished with bonded neoprene-tipped 1/4-20 spindle (TN134) lock nuts and flang washers (TN123).
| Base L" x W" | 1 x 1 9/16 |
| Clamping Force | 200 lbs. |
| Dimensions" A | 3.75 |
| Dimensions" B | 2.375 |
| Dimensions" C | 1 |
| Dimensions" D | 15/16 |
| Style | Vertical |
| Weight | 0.35 lbs. |
| Packaged cube cu ft | 0.0081 |
|---|---|
| Packaged height ft | 0.1833 |
| Packaged length ft | 0.3333 |
| Packaged weight lbs | 0.35 |
| Packaged width ft | 0.1333 |
| Shipping time | Ships in 7-10 days |
