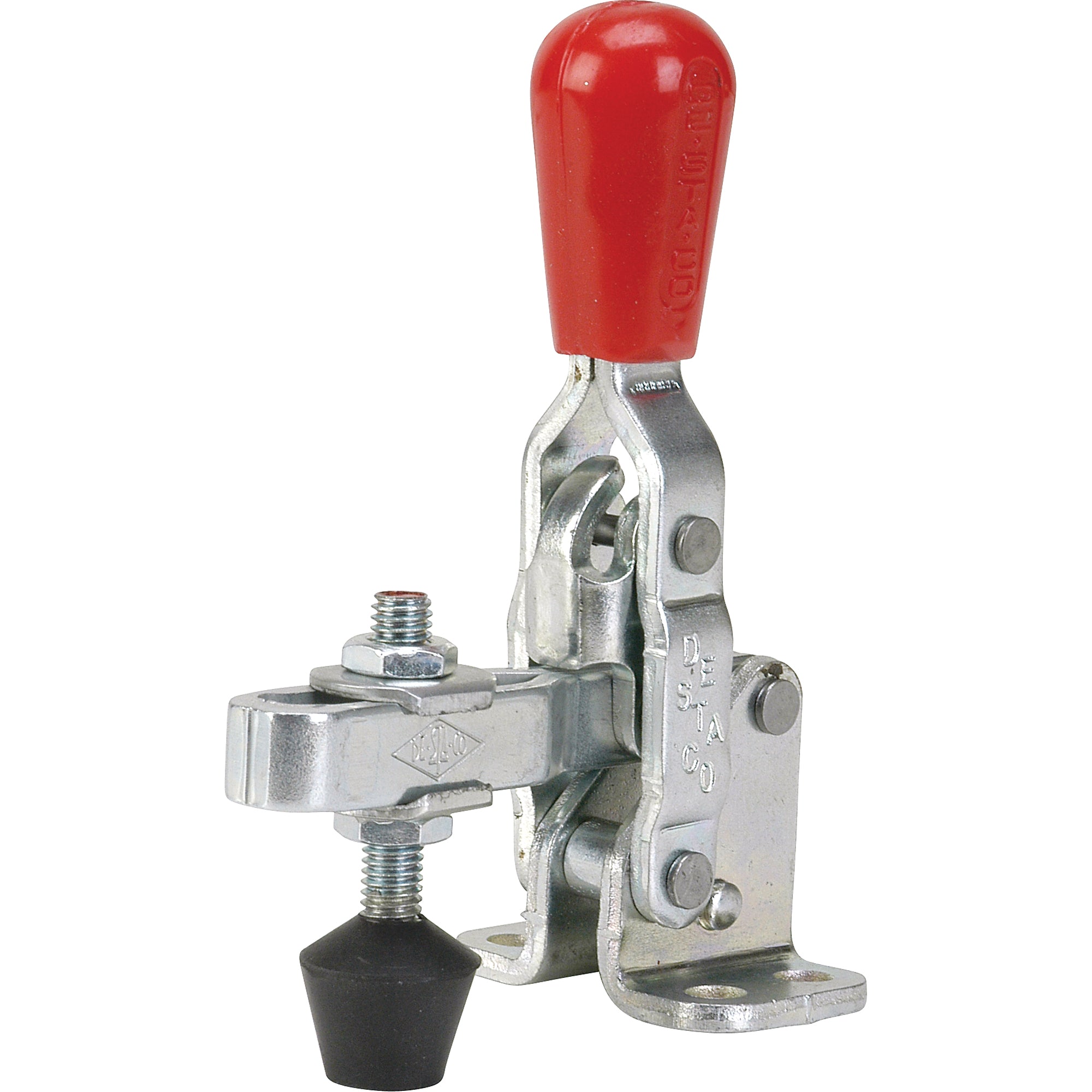

Vertical Hold-Down Clamps - 201 Series
Regular price
$44.30
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- The most popular type of hold-down clamp, manufactured in capacities of up to 6000 lbs. The hold-down bar exhibits a minimum 90° opening angle and can be solid or U-shaped. Stainless steel units are available for the food industry or corrosive environments. The smallest vertical clamp available. U-shaped hold-down bar furnished with bonded neoprene-tipped 10-32 spindle assembly (TN140) and flanged washers (TN121).
| Base L" x W" | 1 x 1 5/16 |
| Clamping Force | 100 lbs. |
| Dimensions" A | 3.0625 |
| Dimensions" B | 2.015625 |
| Dimensions" C | 11/16" |
| Dimensions" D | 5/8" |
| Style | Vertical |
| Weight | 0.15 lbs. |
| Packaged cube cu ft | 0.0053 |
|---|---|
| Packaged height ft | 0.2083 |
| Packaged length ft | 0.2333 |
| Packaged weight lbs | 0.155 |
| Packaged width ft | 0.1083 |
| Shipping time | Ships in 5-8 weeks |
