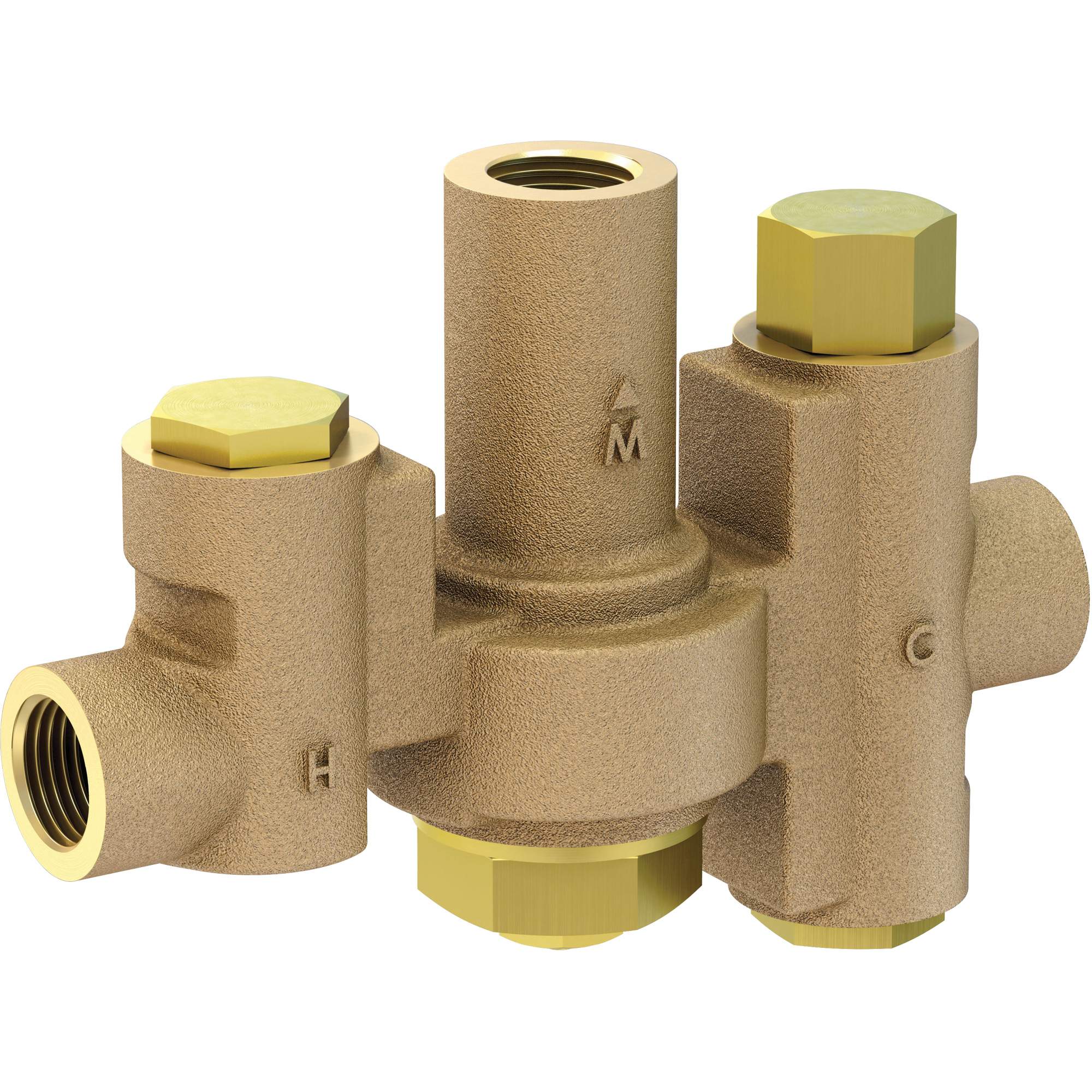

Mid-Capacity Thermostatic Mixing Valve for Individual Eye/Face Wash Stations - SHL793
Mid-Capacity Thermostatic Mixing Valve for Individual Eye/Face Wash Stations - SHL793

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Hughes

Mid-Capacity Thermostatic Mixing Valve for Individual Eye/Face Wash Stations

SKU: SHL793
(0)
$3,725.00 For better pricing, click here
Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
In stock
Ships in 11-14 days

Got questions?

Feel free to get in touch

Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
  • Positive hot water shut-off eliminates the delivery of scalding water to equipment
  • Integral cold water bypass ensures reliable cold water delivery if hot water supply is interrupted
  • Integral cartridge style checks with screens to prevent backflow and to filter debris entering the valve
  • Certified to ASSE 1071 standards
  • These valves blend hot and cold supply water to deliver tepid water (85°F / 29°C) to emergency equipment
  • With a range of 2 to 35.1 GPM at 30 PSI (7.6 to 133 LPM at 2 BAR G), this mid-capacity valve is sufficient for a single eyewash or drench shower
  • Best specified for systems requiring bypass rates of up to 25 GPM (94.6 LPM)
  • The valve can be installed into existing emergency shower applications and is easily tested and repaired
  • Helps meet ANSI Z358.1-2014 and accurately controls outlet temperature in accordance with ASSE 1071 standards
  • ASSE 1071 approved and lead free certified
Gallons Per Minute (GPM) 2 - 35.1 GPM
Manufacturer's Warranty 1 Year
Operating Pressure 35 - 125 PSI
Water Inlet 3/4"" (F)
Packaged cube cu ft 0.4167
Packaged height ft 0.5
Packaged length ft 0.8333
Packaged weight lbs 14
Packaged width ft 1
Shipping time Ships in 11-14 days
