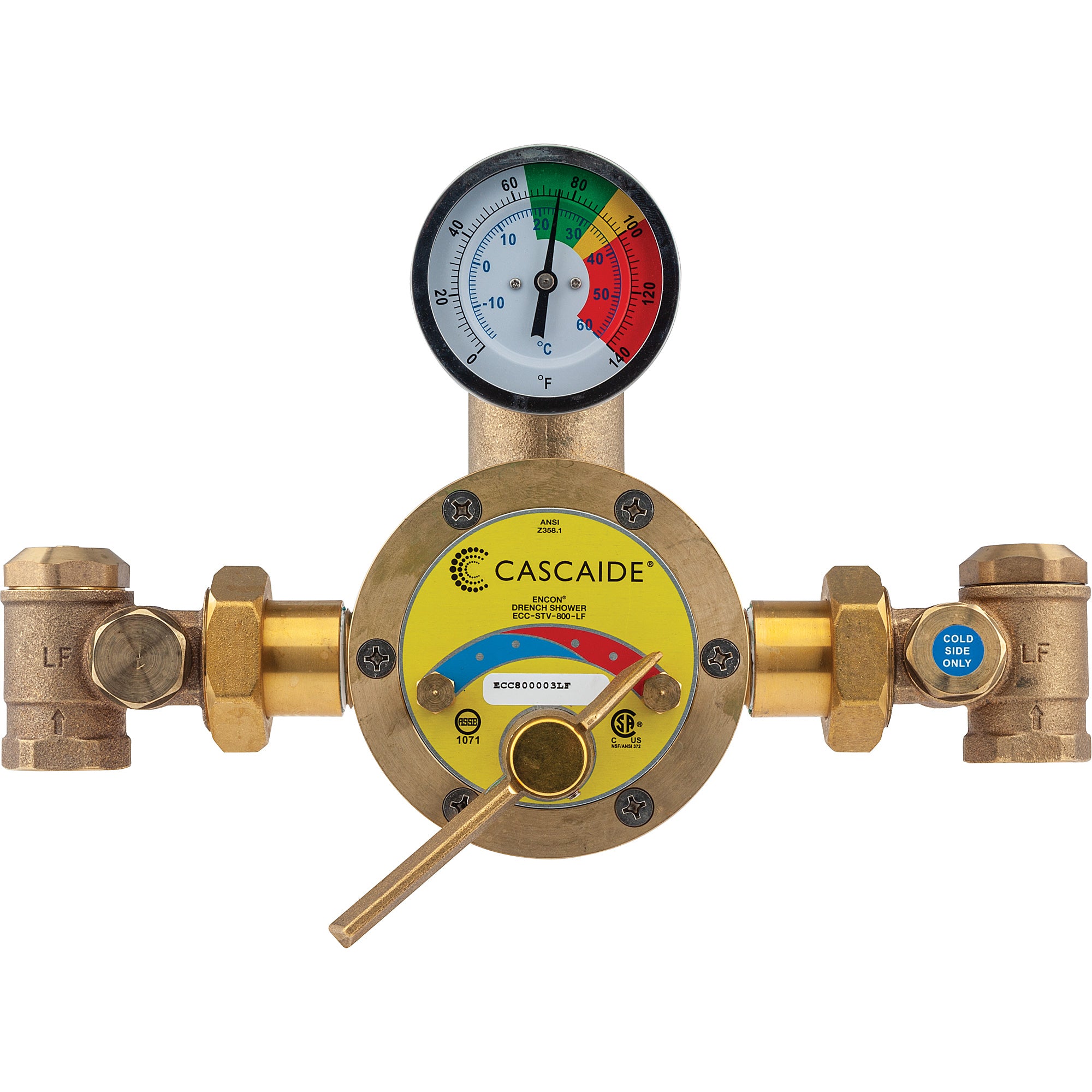

Mixing Valve for Exposed Assembly of Drench or Combination Emergency Shower
Regular price
$3,008.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Locking temperature regulator to prevent accidental movement set for 85°F (29°C)
- Mixing valve will close down on failure of cold water supply
- Mixing valve with special internal cold water bypass capable of 20 GPM (76 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply
- Adjustable high temperature limit stop * set for 90°F (32°C)
- Full 1"" top or bottom inlets and 1-1/4"" top outlet
- Integral wall support
- Dial thermometer (range 0 to 140°F, -10 to 60°C)
- Rough bronze finish
- Union angle checkstops on inlets
- A method to assist in achieving compliance to ANSI Z358.1
| Gallons Per Minute (GPM) | 56 GPM |
| Maximum Supply Pressure | 125 PSI (8.6 Bar) |
| Maximum Supply Temperature | 180°F (82°C) |
| Minimum Gallons Per Minute | 3 GPM |
| Packaged cube cu ft | 1.2246 |
|---|---|
| Packaged height ft | 0.789 |
| Packaged length ft | 1.1 |
| Packaged weight lbs | 16.31 |
| Packaged width ft | 1.411 |
| Shipping time | Ships in 5-8 weeks |
