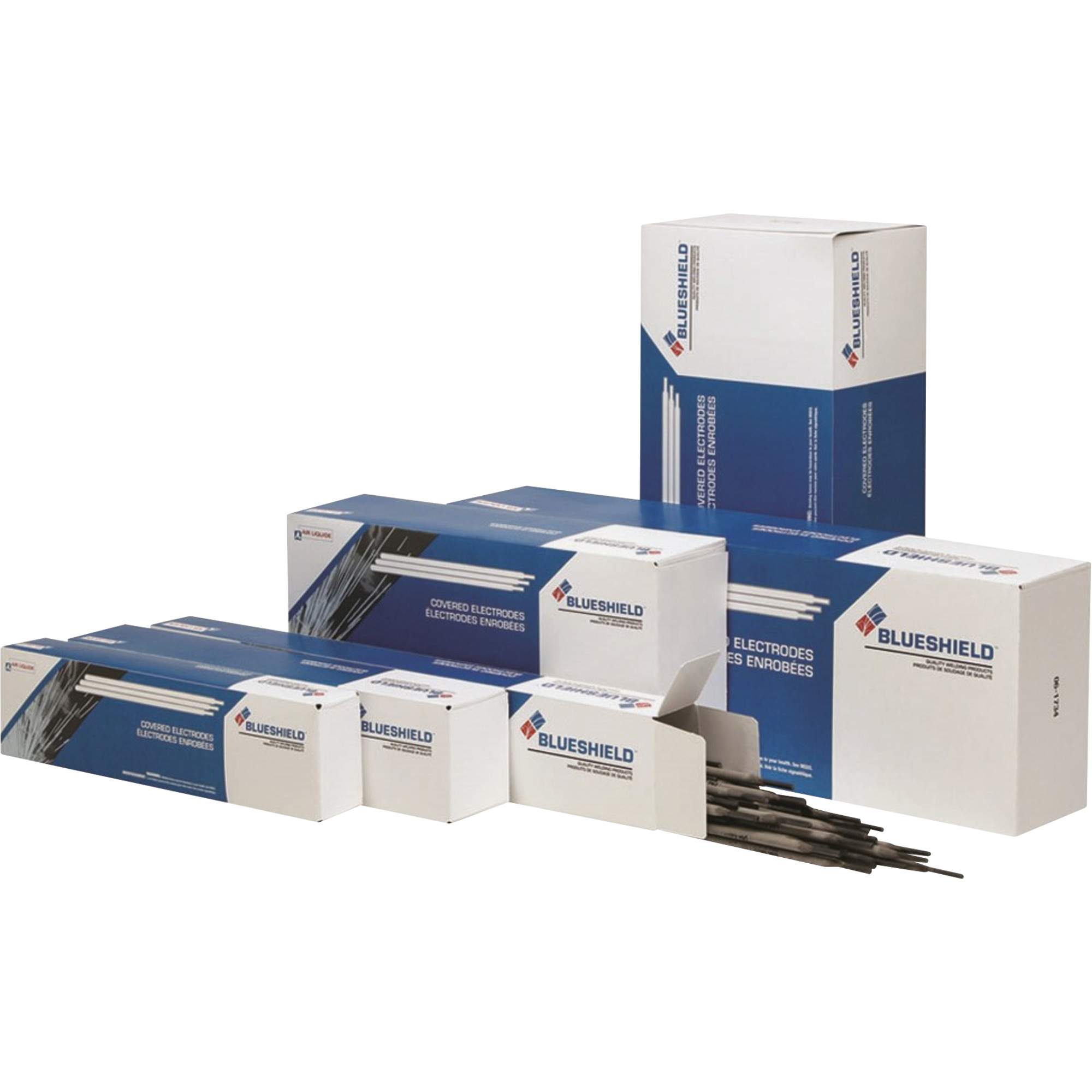

Basic-Coated Electrodes - NJD367
Basic-Coated Electrodes - NJD367

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Air Liquide

Basic-Coated Electrodes

SKU: NJD367
(0)
$132.00 For better pricing, click here
Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
In stock
Ships in 5-8 weeks

Got questions?

Feel free to get in touch

Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
  • BlueShield™ Shielded-metal arc welding provide the best possible weld quality
  • Premium low hydrogen electrode for high-strength steels with toughness down to -45°C
  • Leader in the Canadian market, the BlueShield line meets high-quality standards
  • Easy to use, low spatter, with excellent appearance
  • For boiler and pressure vessel work, structural fabrication, pressure piping, maintenance
  • The low volume hydrogen diffusion from the weld deposit considerably reduces the tendency to underbead (cold) cracking
  • Ideal for boiler and pressure vessel work, structural fabrication, and more
  • Allows welding of ""difficult-to-weld"" steels with less preheat requirements than is required for non-basic type electrodes
  • Enables code quality welds (X-ray clear) with proper welding procedures
  • Operates with DC current electrode positive or AC
  • Allows for stringer bead or weaving technique
  • Maintain the shortest arc possible for the best mechanical properties
  • Minimize porosity by striking the electrode ahead of the crater of the previously finished weld bead and quickly move back into the crater while reducing the arc length
Amperage 100 - 160 A
Container Size 5 kg
Diameter 3.2 mm
Elongation 0.36
Length 14"" (350mm)
Optimum Current 130 A
Polarity AC, DC+
Tensile Strength 561 MPa
Type Low-Hydrogen
Weight 11 lbs.
Yield Strength 70.8 KSI
Packaged cube cu ft 0.0596
Packaged height ft 0.275
Packaged length ft 1.0833
Packaged weight lbs 11.29
Packaged width ft 0.2
