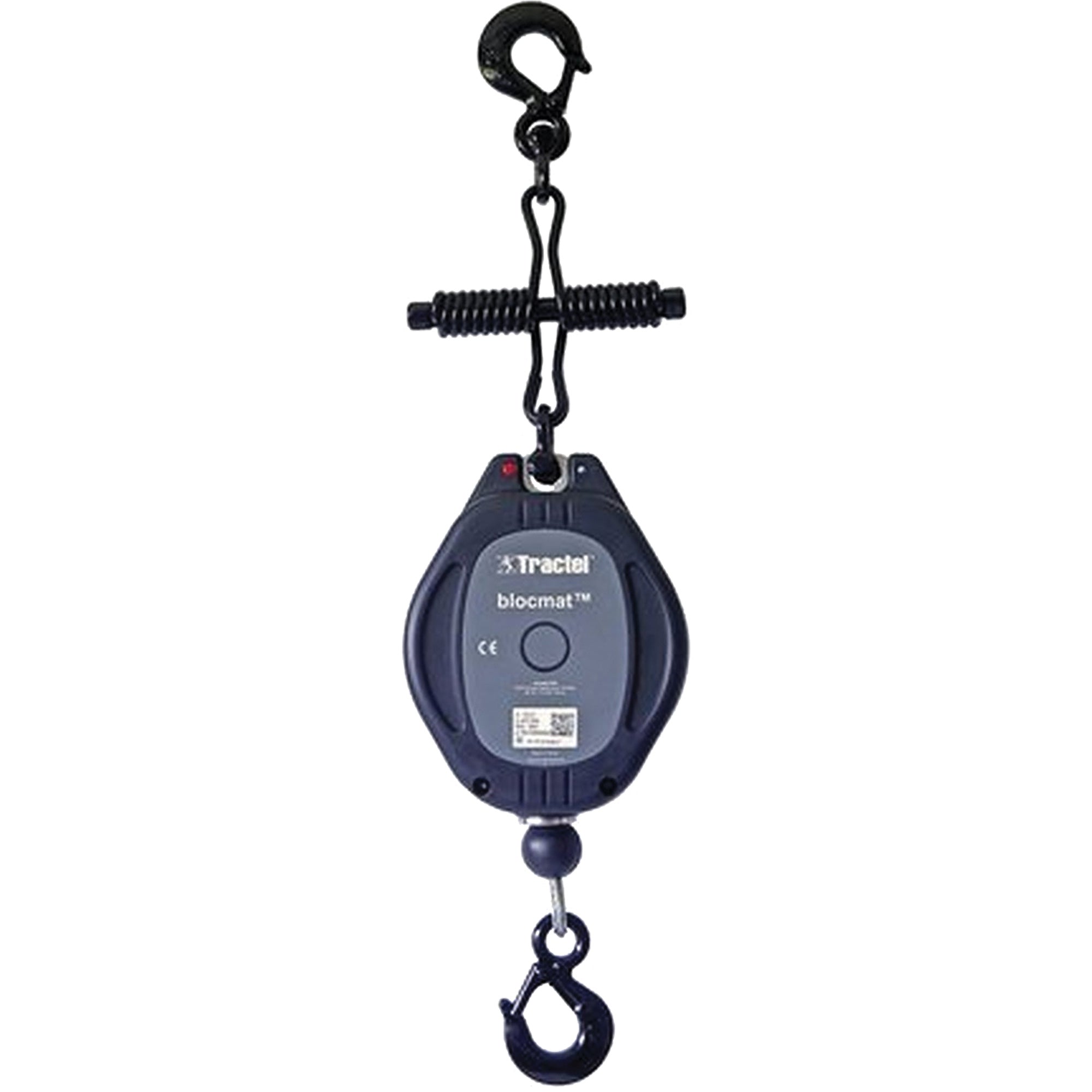

Blocmat™ TSD Load Stop
Regular price
$1,793.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Limited return height
- Gradual load stop
- New TSD (Top System Dissipator) system ensures a drop load of less than 650daN, even if the load drops when the cable is completely unwound, eliminating the risk of violent shock if the load drops
- Reduced weight facilitates transport and installation
- Quick set-up
- Simplified maintenance thanks to its optimized design
- Plastic ABS-filled polyamide casing is anti-UV and very resistant to shocks and ageing
- Stop mechanism equipped with a single pawl
- Good ergonomics ensure a perfect grip
- Can be used vertically, horizontally and on an inclined plane with the use of a return pulley
| Cable Length | 10 m |
| Device Type | Automatic/Load Arrestor |
| Height | 685 mm |
| Max Fall Height | 700 mm |
| Max Fall Load | 6.5 kN |
| Max Number of Winding/Unwinding Cycles | 10000 |
| Thickness | 98 mm |
| Weight | 5.9 kg |
| Width | 190 mm |
| Working Load Limit | 551.156 lbs. (0.275578 tons) |
| Packaged cube cu ft | 0.2501 |
|---|---|
| Packaged height ft | 0.29 |
| Packaged length ft | 0.69 |
| Packaged weight lbs | 12.6 |
| Packaged width ft | 1.25 |
