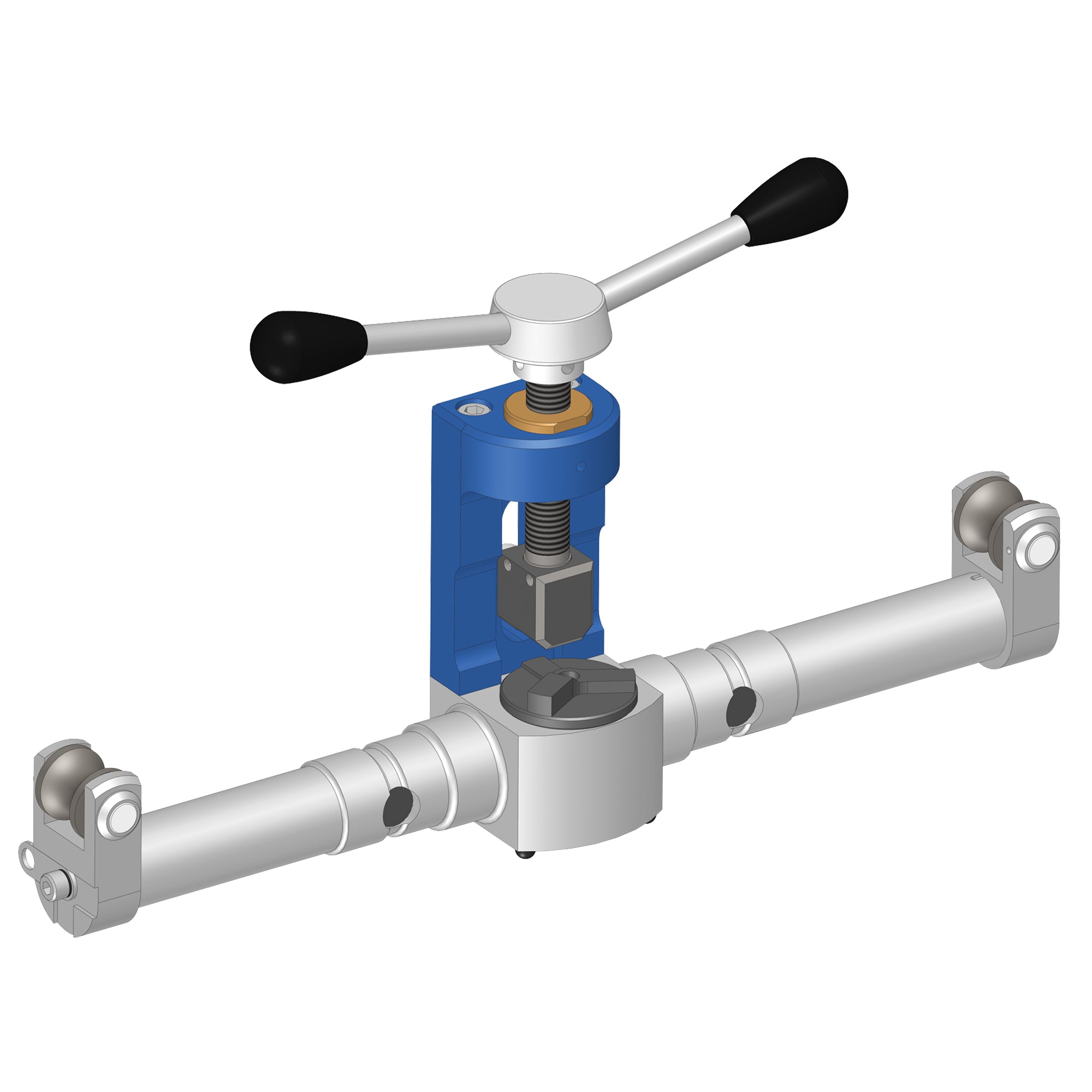

Dynarope Tensiometer HF 36/1/LPT
Regular price
$28,422.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Designed for measuring forces in pretension wire ropes that cannot be dismantled and for which tension must be known or confirmed
- Fits directly onto the tensioned wire rope and is simply held in position by turning a handle
- Device is comprised of a load cell with strain gauges and a display driven by a microprocessor
- Display of the force measured by the load cell takes into account parameters you enter such as the diameter, composition and structure of the rope
- Accuracy:<1% of nominal capacity
- Operating temperature from -4 to 140°F (-20 to 60°C)
- Displays mass or force
- Protection: IP 65 (NEMA 4)
- FOB Tractel, Montreal, Qc
| Increments | 10 lbs. (5 kg) |
| Min. Wire Rope Diameter | 3/16" |
| Wire Rope Diameter | 1/2" |
| Working Load Limit Range | 400 lbs - 10000 lbs. (200 kg - 5000 kg.) |
| Packaged cube cu ft | 1.3792 |
|---|---|
| Packaged height ft | 0.67 |
| Packaged length ft | 1.15 |
| Packaged weight lbs | 17.75 |
| Packaged width ft | 1.79 |
Order Processing Orders are processed within 2 business days. Orders placed before 2:00 PM PST typically ship within 2 business days. Orders placed after 2:00 PM PST or on weekends/holidays begin processing the next business day.
Local Pickup — FREE Pick up your order at our Delta warehouse at no charge.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
