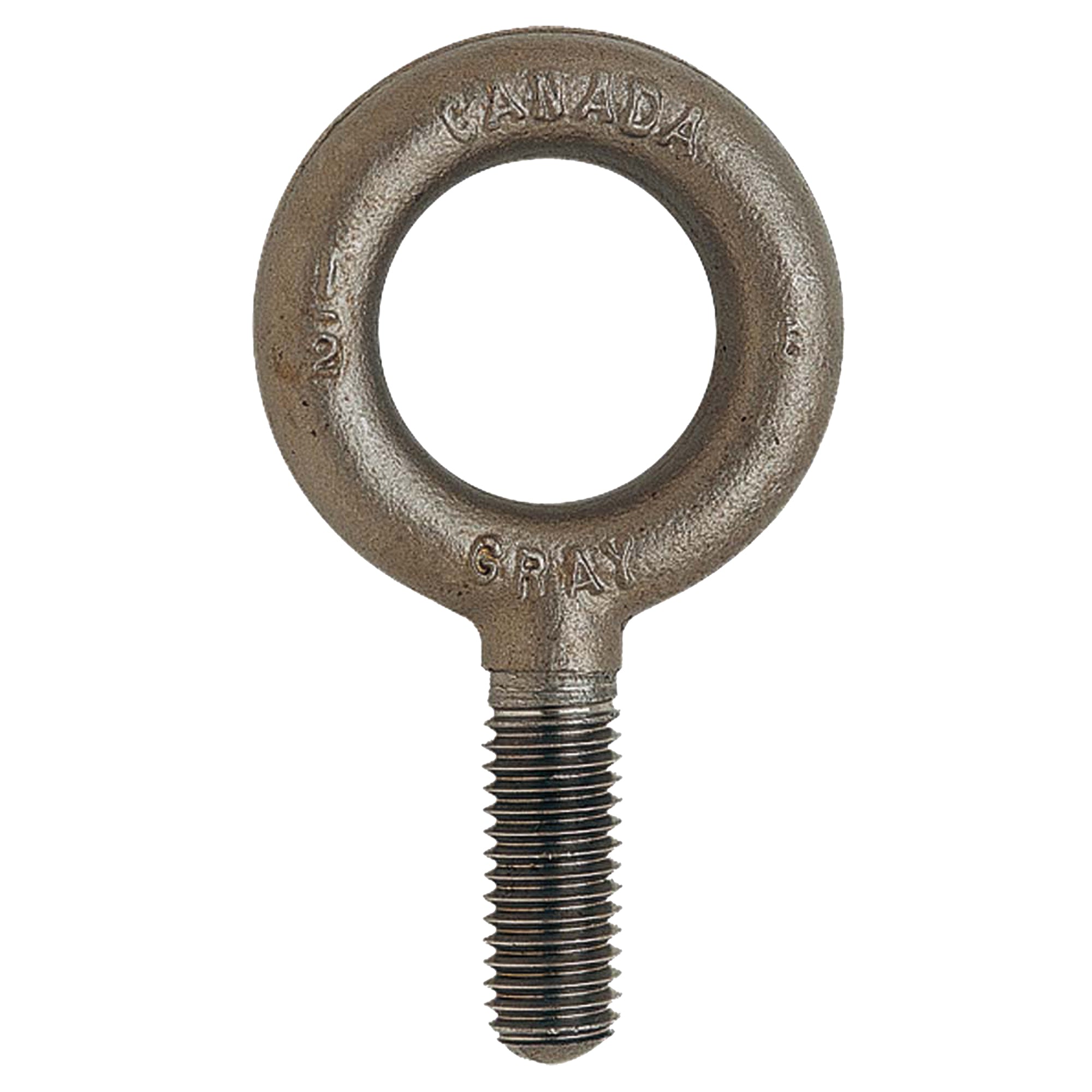

Eye bolt
Regular price
$7.65
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Never apply loads greater than rated capacity
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
| Body Style | Without Shoulder |
| Eye Diameter | 1-11/16" |
| Finish | Uncoated Natural Finish |
| I.D. Eye | 1" |
| O.D. Eye | 1-11/16" |
| Overall Dimensions | 3" L x 1-3/4" W x 13/32" H |
| Shank Length | 1-1/4" |
| Shank Threading | Fully Threaded |
| Thread size mm, UNC-2A | 3/8-16" |
| Weight | 0.1 lbs. |
| Working Load Limit | 1550 lbs. (0.775 tons) |
| Packaged cube cu ft | 0.0013 |
|---|---|
| Packaged height ft | 0.15 |
| Packaged length ft | 0.25 |
| Packaged weight lbs | 0.162 |
| Packaged width ft | 0.0333 |
