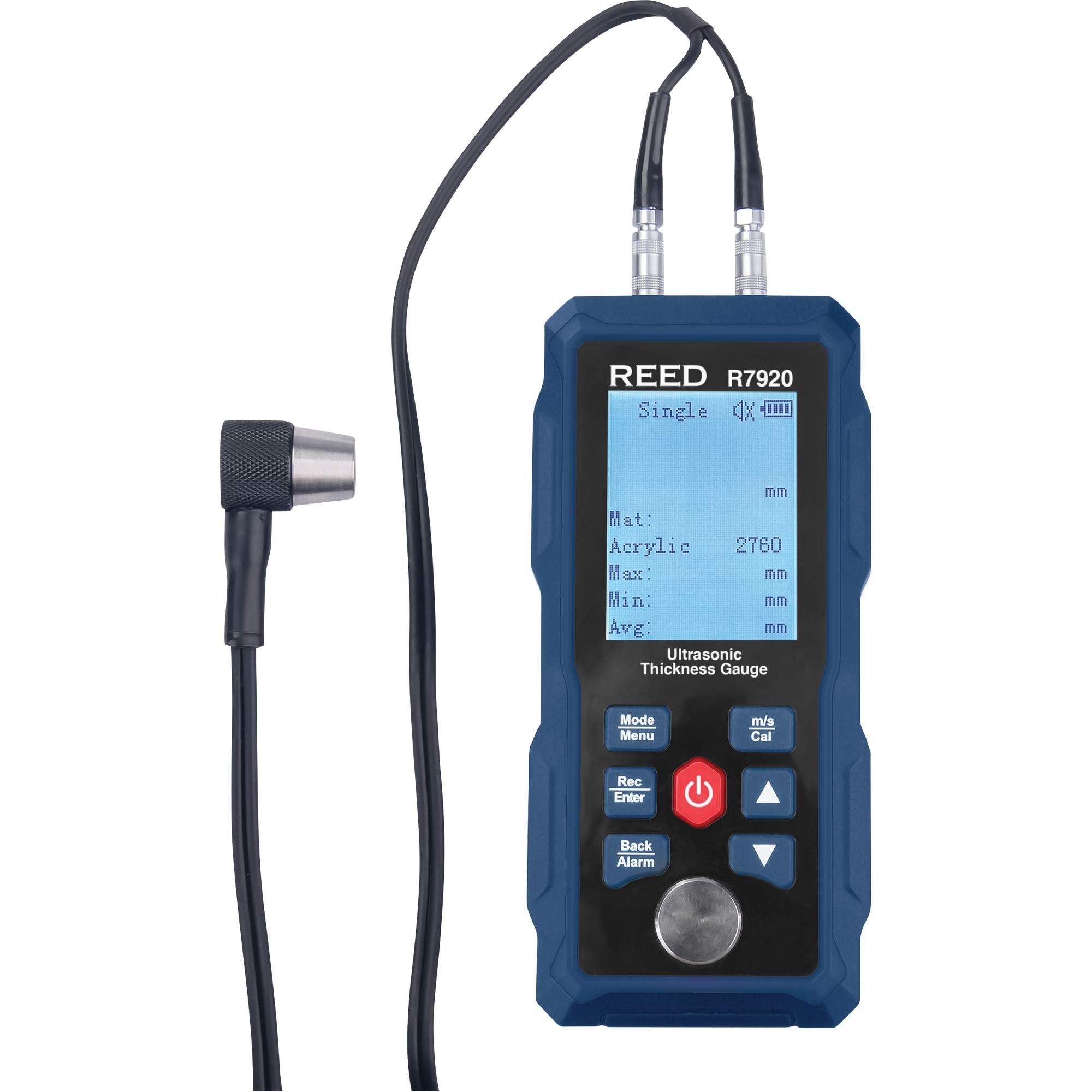

Thickness Gauge with 5-Step Calibration Block
Regular price
$695.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Internal memory capable of storing up to 300 readings with user alarm thickness limits and features the 5-step calibration block
- Measures the thickness of steel, cast iron, aluminum, acrylic resin, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, and nodular cast iron
- Easy-to-read backlit LCD display
- User-selectable units of measure (in/mm)
- Displays sound velocity at the touch of a button
- User-adjustable High/Low alarms
- Automatic material calibration
- Auto shut-off and low battery indicator
| Accuracy | <10mm: ±0.1mm |
| Display | Digital |
| Measuring Mode | Ultrasound |
| Measuring Range | 0.04 to 11.8" (1 to 300mm) |
| Operating Humidity Range | 20 to 80% |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Probe Diameter | 0.5" (12.7mm) |
| Probe Length | 3' (91cm) |
| Velocity Range | 1000 to 9999m/s (0.039 to 0.394in/µs) |
| Packaged cube cu ft | 0.0085 |
|---|---|
| Packaged height ft | 0.09 |
| Packaged length ft | 0.45 |
| Packaged weight lbs | 0.38 |
| Packaged width ft | 0.21 |
| Shipping time | Ships in 11-14 days |
