Si2-PD™ Industrial Acoustic Imaging Camera - ID227
Si2-PD™ Industrial Acoustic Imaging Camera - ID227

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

FLIR

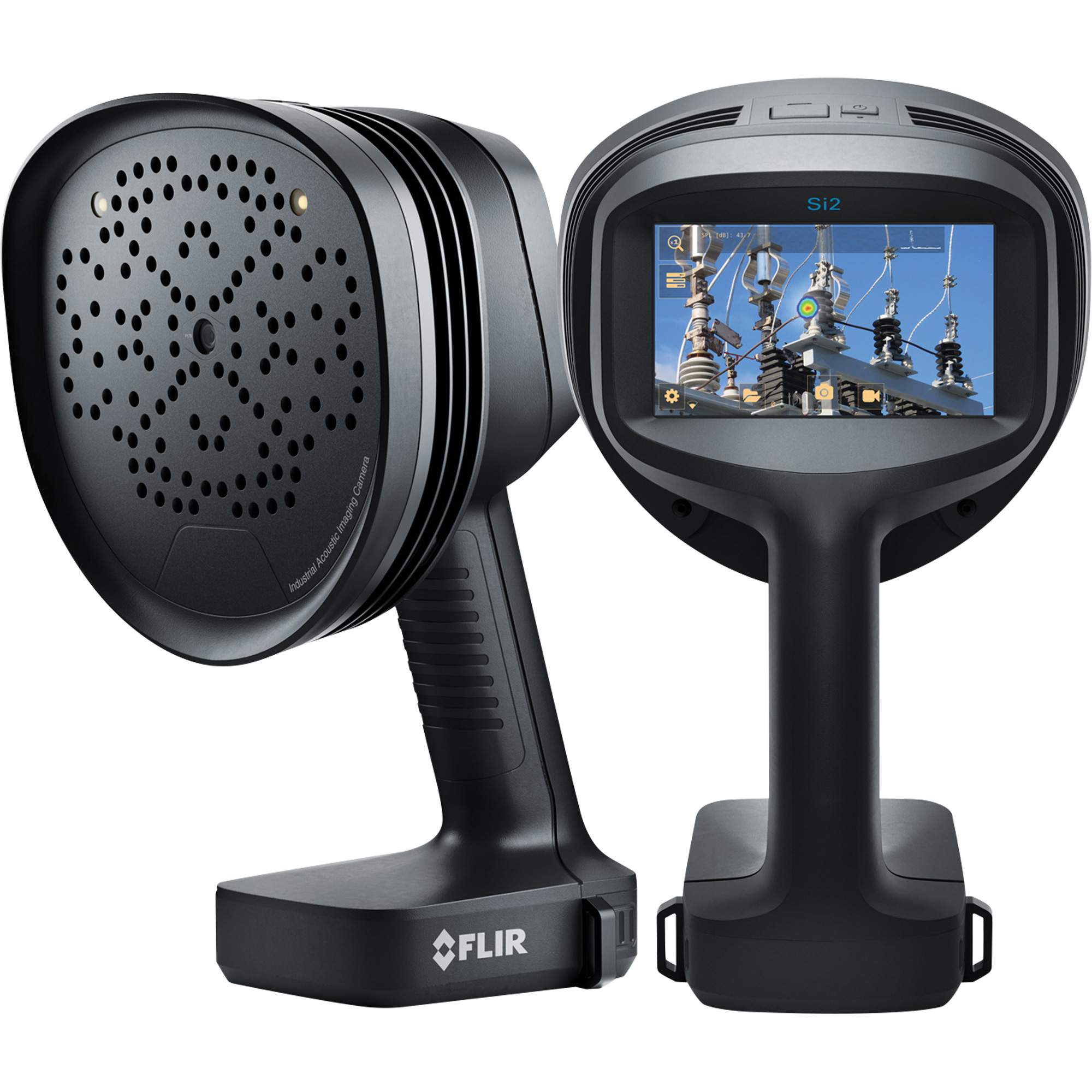

Si2-PD™ Industrial Acoustic Imaging Camera

SKU: ID227
(0)
$25,270.00 For better pricing, click here
Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
In stock

Got questions?

Feel free to get in touch

Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
  • Helps you reduce maintenance costs for electrical equipment by offering an effective solution for partial discharge (PD) detection and response
  • This camera detects, locates, classifies, and assesses PD faults from up to 200 m (656 ft) away, identifying PD issues 30 times smaller than previously possible
  • It provides on-camera and software-based severity assessments, giving you the decision support needed for precise maintenance decisions
  • For specific applications, you can choose the Si2-LD for leak detection and bearing fault detection, or the Si2-Pro for comprehensive electric utility, leak detection, and bearing fault detection applications
  • Identify PD issues from up to 200 m (656 ft) away and 30 times smaller than those detectable by previous generations, it is indispensable for ensuring operational efficiency and safety
  • Detailed analysis tools including in-device categorization of discharge type, severity, and recommended actions aiding in swift decision-making and appropriate response planning
  • Ensure optimal use and maintenance of equipment in large-scale industrial settings with fleet management, cloud data integration, and OTA software updates
  • Combine acoustic and thermal imaging in the same report
Acoustic Measurement 124 Low-Noise MEMS Microphones, Real-Time Sound Visualization
Bandwidth 2 kHz to 130 kHz
Battery Charger Input: 19-26 V DC, 2.8 A, Max output: 17.4 V DC, 4.8 A
Battery Type Li-Ion Rechargeable Battery Pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh, Max Output: 16.8 V DC, 5 A
Detection Threshold 20 kHz: -7 dB SPL, 35 kHz: 4 dB SPL, 50 kHz: 10 dB SPL, 80 kHz: 36 dB SPL, 100 kHz: 51 dB SPL
Display Size 5"
Distance From 0.3 m (1 ft) up to 200 m (656 ft)
Field of View (FOV) 75° Diagonal
Nominal Input Voltage 12 V DC, Max Input: 17 V DC , 3.3 A (Limited)
Resolution 1280 x 720 pixels
Video Frame Rate Camera: 60 fps, Acoustic Image: 30 fps, Screen: 70 fps
Packaged cube cu ft 0.3065
Packaged height ft 0.525
Packaged length ft 1.0333
Packaged weight lbs 2.16
Packaged width ft 0.565
