Home » True RMS Mini Clamp Meter

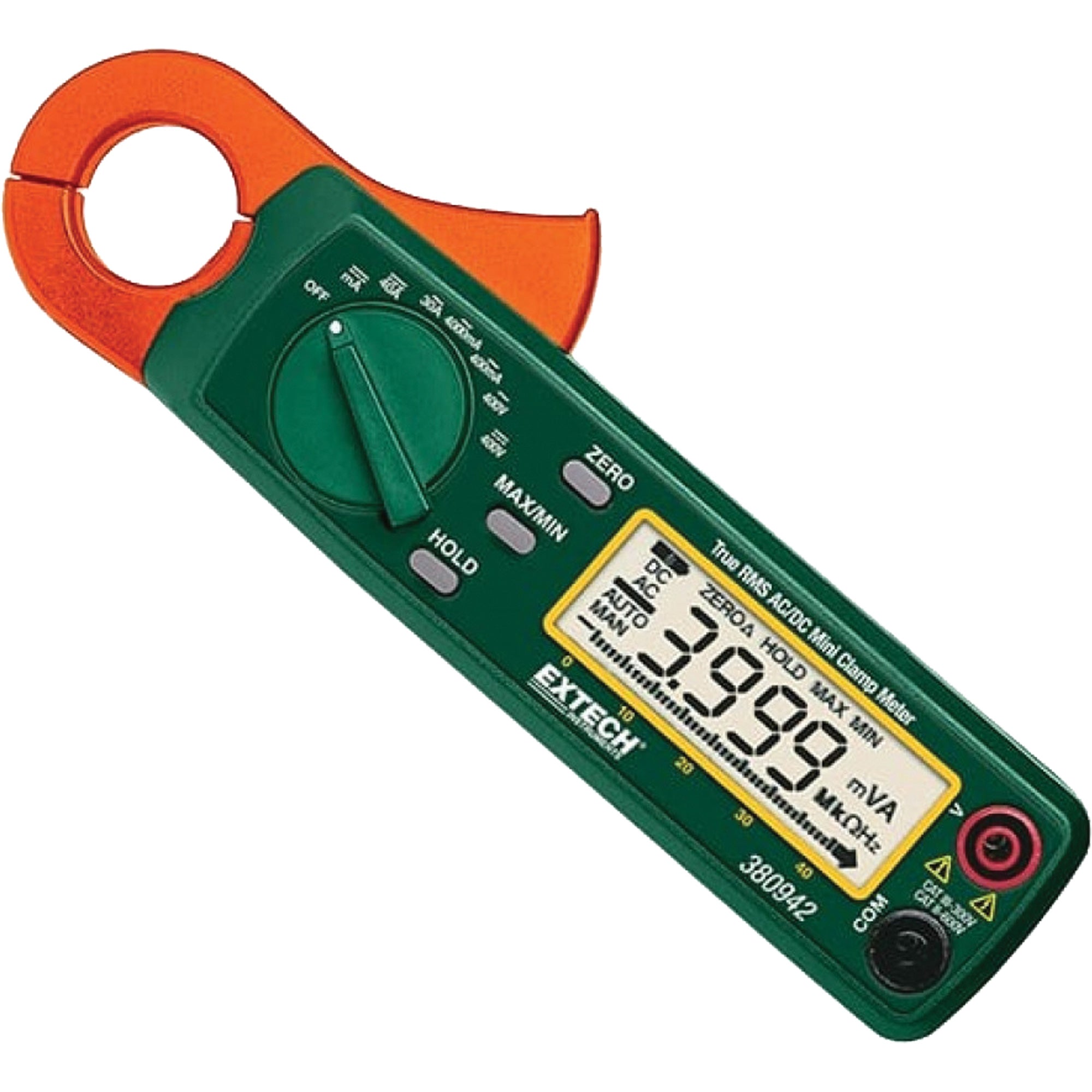

True RMS Mini Clamp Meter - ID153
True RMS Mini Clamp Meter - ID153

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Extech

True RMS Mini Clamp Meter

SKU: ID153
(0)
$779.00 For better pricing, click here
Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
In stock
Ships in 3-4 weeks

Got questions?

Feel free to get in touch

Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
  • True RMS measurements where distortion may otherwise cause inaccuracies
  • 30A range with 0.1mA (AC) and 1mA (DC) resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters
  • Voltage measurements using test leads
  • One touch "Auto Zero" for DCA measurements eliminates the need to turn a knob to zero adjust
  • Measure current draw when conducting energy usage audits
  • Large 4000 count LCD display with full function indication
  • Fast 40 segment analog bargraph
  • Data hold, Max/Min recall display
  • CAT III 300V safety rating
  • Small diameter jaw opening designed to reach into small areas
  • Optional 3-prong AC Line Splitter enables safe and easy measurements on power cables with molded plugs (splits hot conductor from neutral and ground)
AC Current Range 400mA, 4A, 30A
AC/DC Voltage Range 400V
Current Readings AC/DC
DC Current Range 4A, 30A
Dimensions 7.2 x 2.5 x 1.4" (183 x 64 x 36mm)
Jaw Opening/Cable Size 0.9" (23mm)/4/0 AWG
Voltage Readings AC/DC
Weight 6.2 oz. (190g)
Packaged cube cu ft 0.0132
Packaged height ft 0.11
Packaged length ft 0.6
Packaged weight lbs 1.2
Packaged width ft 0.2
