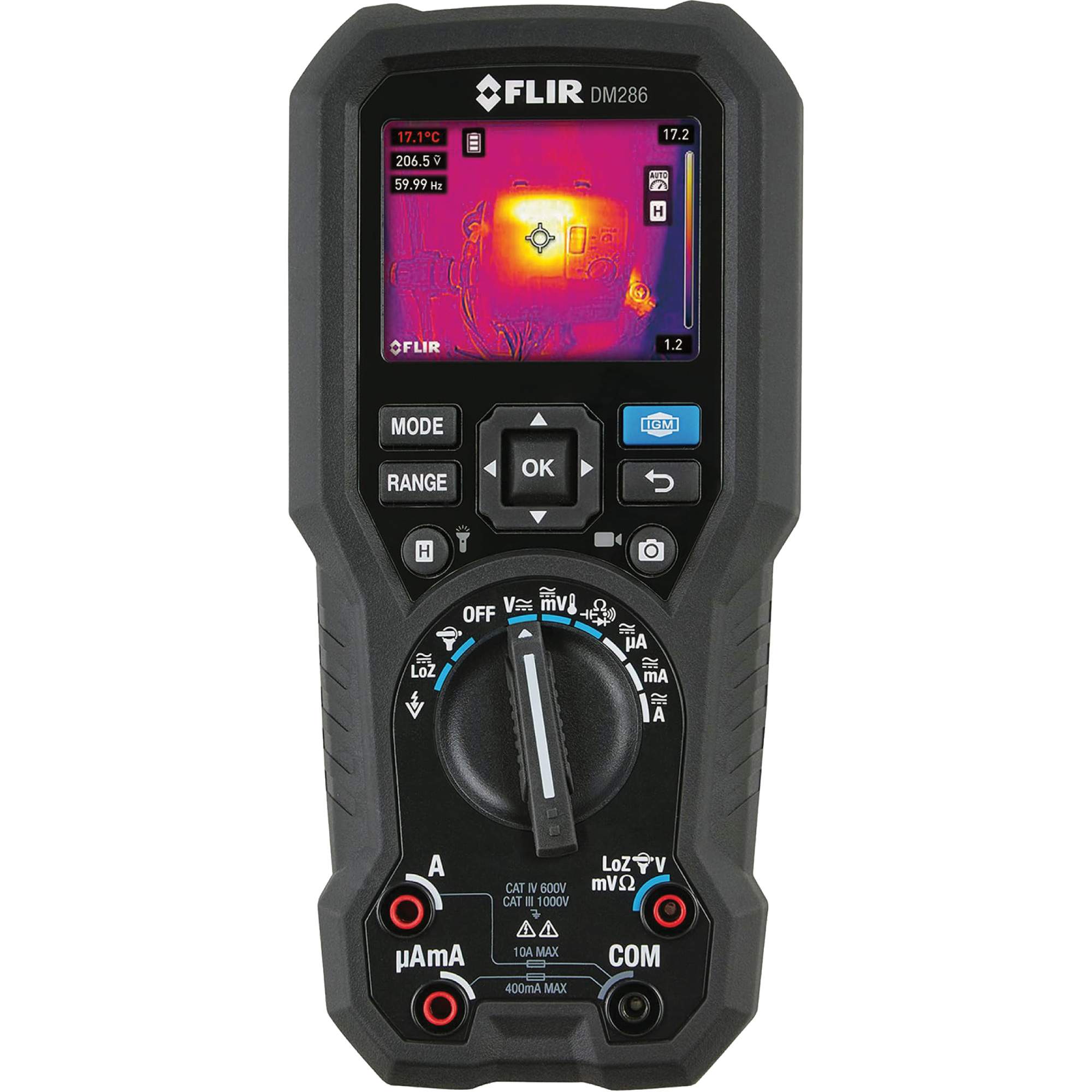

DM286 Industrial Imaging Multimeter
Regular price
$1,399.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- The ultimate tool for electrical inspectors seeking a safe, accurate, and efficient way to identify, document, and share findings
- With IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging), you can safely identify where hazards might be before contact is ever made
- The powerful multimeter can capture and store up to 30,000 images and 100 log files, with the ability to record thermal and visual video clips
- Stream live data in real time from the DM286 to your mobile device
- Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing
- MSX gives you unrivaled clarity by embedding edge and outline detail onto thermal images
- The FLIR DM286 comes with a built-in LED worklight for better visibility in dark or poorly lit areas, two rechargeable Lithium Polymer battery packs for all-day operation, and a 2 m drop test rating for durability
- Use the FLIR METERLiNK app to quickly and efficiently capture and compare readings, analyze and share radiometric images and videos, and create reports
| AC/DC Voltage | 1000 V AC RMS ±(1.0％＋3) 1000 V DC ±(0.09%+3) |
| Connectivity Type | Bluetooth BLE |
| Current Readings | AC/DC |
| Field of View (V x H) | 71° × 56° |
| Frame Rate | 9 Hz |
| Image Modes | Thermal MSX (Multi Spectral Dynamic Imaging), Thermal Camera Only, Digital Camera Only |
| IR Resolution | 160 × 120 (19,200 pixels) |
| IR Sensitivity | 150 mK (0.15°C) |
| Spectral Response | 8–14 µm |
| Standard(s) Met | ETL, FCC, CE, RCM, UKCA, FDA, EN60825, EN50689 |
| Voltage Readings | AC/DC |
| Packaged cube cu ft | 0.1477 |
|---|---|
| Packaged height ft | 0.3333 |
| Packaged length ft | 0.9167 |
| Packaged weight lbs | 2.84 |
| Packaged width ft | 0.4833 |
