Home » Thickness Gauge with Calibration Certificate

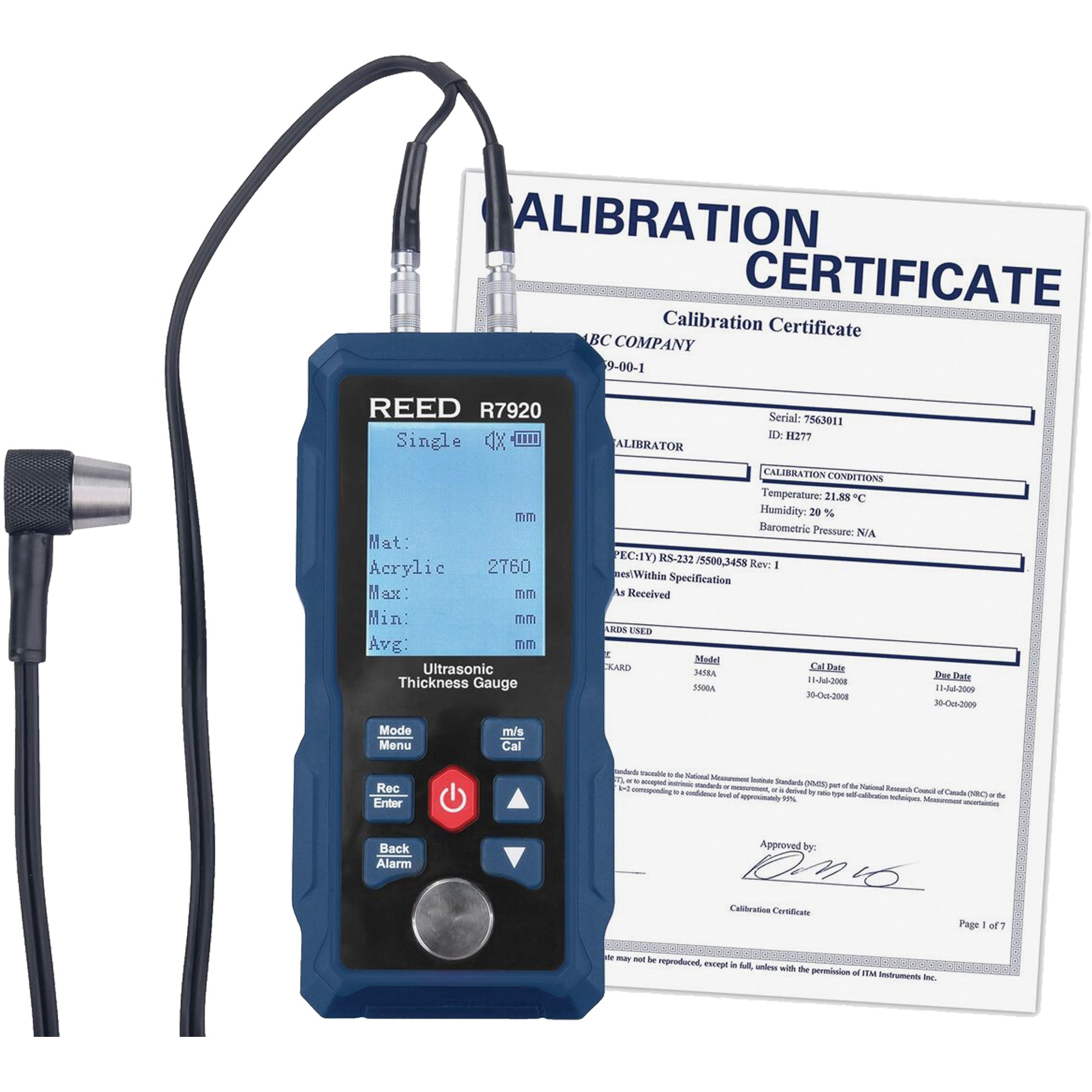

Thickness Gauge with Calibration Certificate - ID027
Thickness Gauge with Calibration Certificate - ID027

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Reed Instruments

Thickness Gauge with Calibration Certificate

SKU: ID027
(0)
$915.00 For better pricing, click here
Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
In stock
Ships in 7-10 days

Got questions?

Feel free to get in touch

Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
  • A portable device used for non-destructive measurement of the thickness of metal and other materials
  • Uses high-frequency sound waves to determine the thickness of a material by measuring the time it takes for the sound waves to travel from the gauge to the material and back
  • Easy-to-read backlit LCD display
  • User-selectable units of measure (in/mm)
  • Internal memory stores up to 300 measurements
  • Displays sound velocity at the touch of a button
  • User-adjustable High/Low alarms
  • Automatic material calibration
  • Auto shut-off and low battery indicator
  • Suitable for use by technicians and inspectors in a variety of industries
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
Accuracy <10mm: ±0.1mm, ≥10mm: ±(1% rdg. +0.1mm)
Compatible Materials Steel, cast iron, aluminum, acrylic resin, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, and nodular cast iron
Display Digital
Includes Ultrasonic Thickness Gauge; Ultrasonic Couplant Gel; Probe; USB Cable; Carrying Case; Calibration Certificate
Manufacturer's Warranty 1 Year
Measuring Mode Ultrasound
Probe Diameter 0.5" (12.7mm)
Probe Length 3' (91cm)
Resolution 0.1mm/0.01mm/0.01"
Thickness Range 0.04" - 11.8" (1 mm - 300 mm)
Velocity Range 1000 to 9999m/s (0.039 to 0.394in/µs)
