Home » True RMS Digital Clamp Meter
True RMS Digital Clamp Meter - IC768
True RMS Digital Clamp Meter - IC768

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Reed Instruments

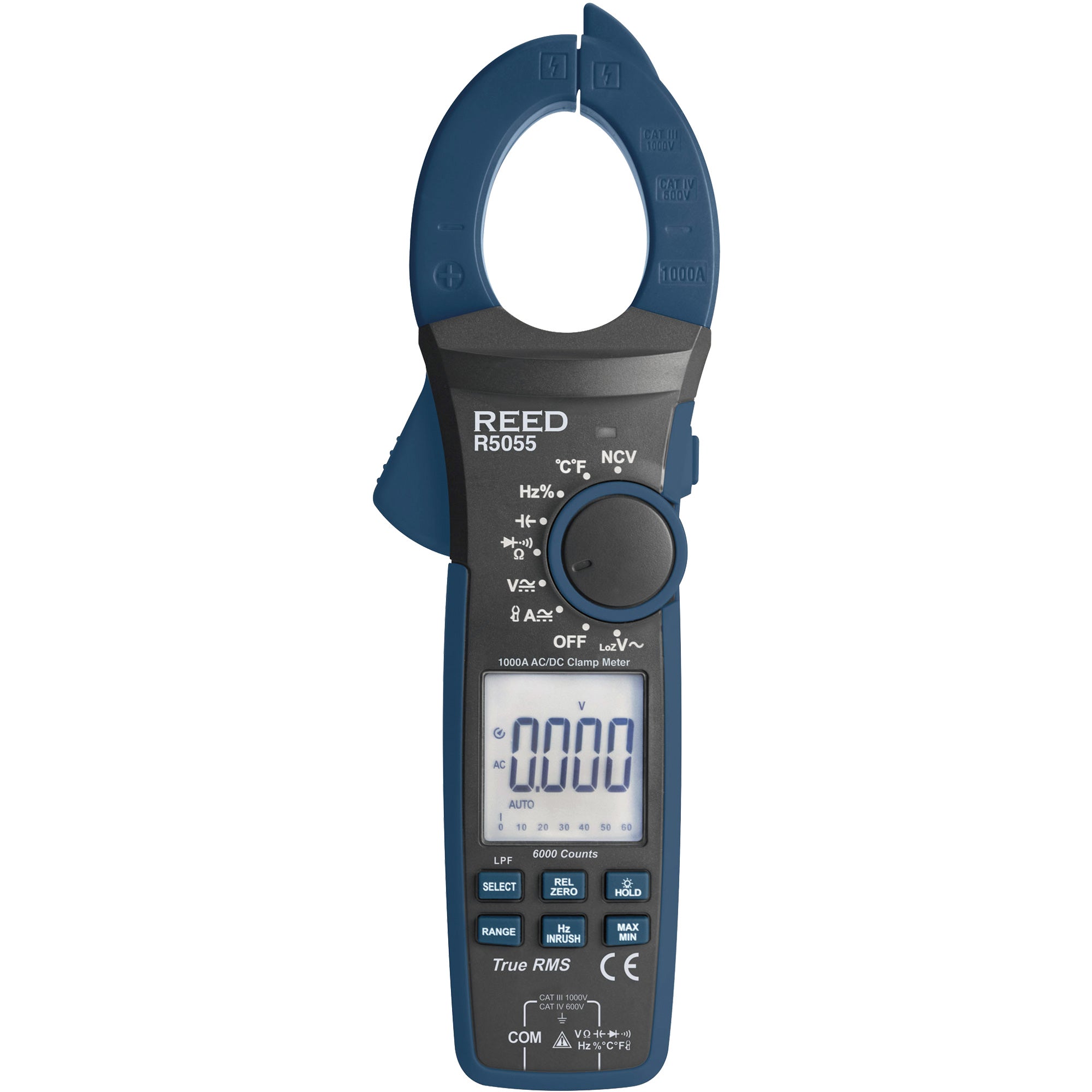

True RMS Digital Clamp Meter

SKU: IC768
(0)
$239.00 For better pricing, click here
Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
In stock
Ships in 7-10 days

Got questions?

Feel free to get in touch

Non-Member Pricing: This price is for non-members. Apply for membership here to access member pricing and benefits.
  • Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle, and contact temperature
  • Features a 6000 count backlit LCD display with a 31-segment analog bargraph
  • Durable double molded plastic housing
  • Keeps track of min/max readings and includes low pass filter and Low impedance (LoZ) mode
  • Ergonomic design fits in user's hand and can be used while wearing protective gloves
  • Built-in LED flashlight
  • Low battery and over range indicators
  • Built-in non-contact voltage detector with LED indicator
  • True RMS voltage and current for accurate measurements
  • Diode test and continuity check functions
  • Certified to CE and ETL
  • Includes: (1) AC/DC True RMS clamp meter, (1) Type K thermocouple, (1) Set of test leads, (1) Carrying case, (3) AAA Batteries
AC/DC Current Range 60A, 600A, 1000A
AC/DC Voltage Range AC - 6V, 60V, 600V, 1000V, DC - 600mV, 6V, 60V, 600V, 1000V
Capacitance Range 60, 600.0nF, 6, 60, 600μF, 6, 60mF
Current Readings AC/DC
Frequency Range 10Hz, 1MHz
Jaw Opening 1.7" (42mm), up to 1500 MCM
Low Impedance (LoZ) AC Voltage Range 600, 1000 V
Low Pass Filter (LPF) AC Voltage Range 600, 1000V
Resistance Range 600Ω, 6, 60, 600kΩ, 6, 60MΩ
Temperature Range -40 to 1832°F (-40 to 1000°C)
Voltage Readings AC/DC
Packaged cube cu ft 0.0312
Packaged height ft 0.25
Packaged length ft 0.5
Packaged weight lbs 1.5
Packaged width ft 0.25
Shipping time Ships in 7-10 days

Order Processing Orders are processed within 2 business days. Orders placed before 2:00 PM PST typically ship within 2 business days. Orders placed after 2:00 PM PST or on weekends/holidays begin processing the next business day.

Local Pickup — FREE Pick up your order at our Delta warehouse at no charge.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
