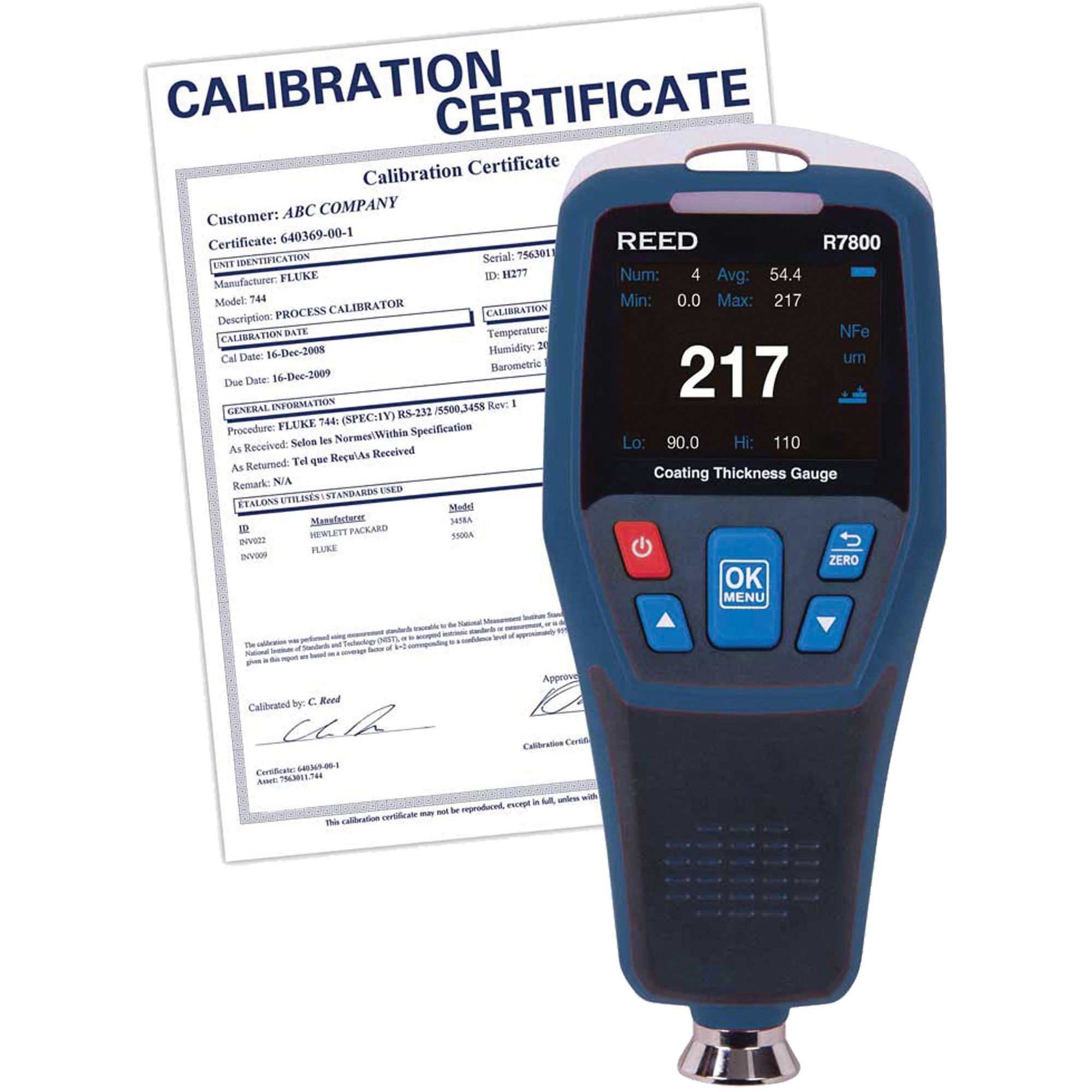

Coating Thickness Gauge with ISO Certificate
Regular price
$599.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Designed for non‐invasive coating thickness measurements
- Features zero or two point calibration, user adjustable high/low alarms, and a USB interface to further analyse results in the included software
- Automatically detects ferrous and non-ferrous substrates
- Easy-to-read colour LCD display
- 360° screen rotation allows users to view measured readings from any angle
- Durable gauge and probe construction
- Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails
- Tri-colour LEDs quickly indicate when measurements are below (red), above (yellow), or within set parameters (green)
- Internal memory stores up to 500 groups of data
- View stored data, charts or real-time measurement with software
- Low battery indication and auto shut off
- Includes: (1) Coating thickness gauge, (1) ISO Certificate with full data and uncertainties, (1) Ferrous substrate, (1) Non-ferrous substrate, (5) Reference films, (1) USB cable, (1) Wrist strap, (1) Sensor cover, (2) AA batteries, (1) Hard carrying case
- Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
| Accuracy | 0 to 1250 μm (±3% +1 μm), 0 to 49.21 mil (±3% +0.04 mil) |
| Certification | CE |
| Dimensions | 5.9" x 2.6" x 1.38" (152 mm x 65 mm x 35 mm) |
| Display Type | Digital |
| Measurement Modes | Single & Continuous |
| Measuring Range | 0 - 1250 µm (0.1 - 49.2mil) |
| Minimum Curvature Radius | 5 mm (196.85 mil) |
| Minimum Substrate Thickness | 0.5 mm (19.69 mil) |
| Refresh Rate | 0.5 Seconds on Continuous Mode |
| Resolution | 0 to 99.9 μm (0.1 μm), 100 to 1250 μm (1 μm), 0 to 4.99 mil (0.01 mil), 5.0 to 49.2 mil (0.1 mil) |
| Weight | 6.35 oz. |
| Packaged cube cu ft | 0.1018 |
|---|---|
| Packaged height ft | 0.7083 |
| Packaged length ft | 0.75 |
| Packaged weight lbs | 1.12 |
| Packaged width ft | 0.1917 |
Order Processing Orders are processed within 2 business days. Orders placed before 2:00 PM PST typically ship within 2 business days. Orders placed after 2:00 PM PST or on weekends/holidays begin processing the next business day.
Local Pickup — FREE Pick up your order at our Delta warehouse at no charge.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
