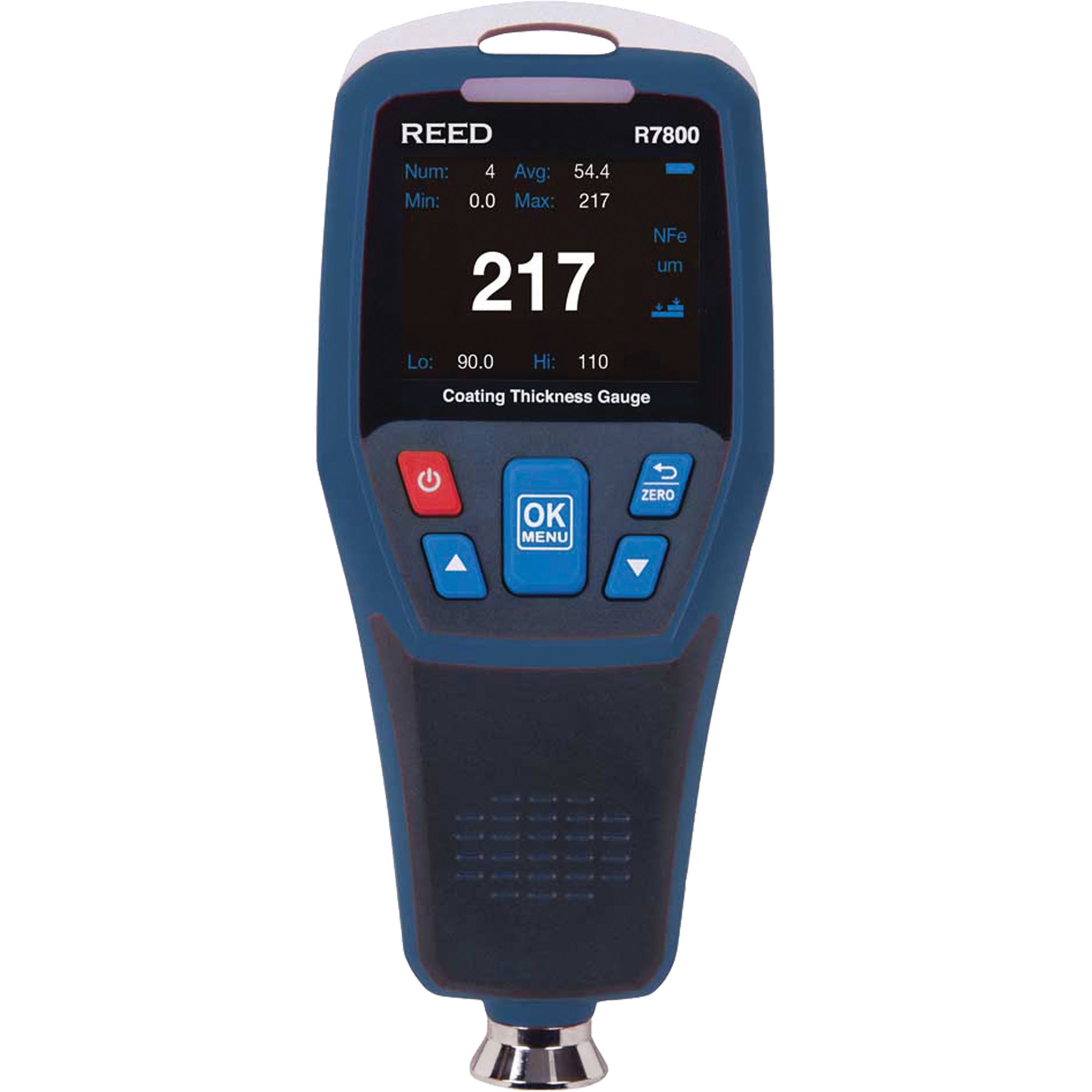

Coating Thickness Gauge
Regular price
$329.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Designed for non‐invasive coating thickness measurements
- Features zero or two point calibration, user adjustable high/low alarms, and a USB interface to further analyse results in the included software
- Automatically detects ferrous and non-ferrous substrates
- Easy-to-read colour LCD display
- 360° screen rotation allows users to view measured readings from any angle
- Durable gauge and probe construction
- Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails
- Tri-colour LEDs quickly indicate when measurements are below (red), above (yellow), or within set parameters (green)
- Internal memory stores up to 500 groups of data
- View stored data, charts or real-time measurement with software
- Low battery indication and auto shut off
- Includes: (1) Coating thickness gauge, (1) Ferrous substrate, (1) Non-ferrous substrate, (5) Reference films, (1) USB cable, (1) Wrist strap, (1) Sensor cover, (2) AA batteries, (1) Hard carrying case
| Accuracy | 0 to 1250 μm (±3% +1 μm), 0 to 49.21 mil (±3% +0.04 mil) |
| Certification | CE |
| Dimensions | 5.9" x 2.6" x 1.38" (152 mm x 65 mm x 35 mm) |
| Display Type | Digital |
| Measurement Modes | Single & Continuous |
| Measuring Range | 0 - 1250 µm (0.1 - 49.2mil) |
| Minimum Curvature Radius | 5 mm (196.85 mil) |
| Minimum Substrate Thickness | 0.5 mm (19.69 mil) |
| Refresh Rate | 0.5 Seconds on Continuous Mode |
| Resolution | 0 to 99.9 μm (0.1 μm), 100 to 1250 μm (1 μm), 0 to 4.99 mil (0.01 mil), 5.0 to 49.2 mil (0.1 mil) |
| Weight | 6.35 oz. |
| Packaged cube cu ft | 0.1039 |
|---|---|
| Packaged height ft | 0.7333 |
| Packaged length ft | 0.7083 |
| Packaged weight lbs | 1.084 |
| Packaged width ft | 0.2 |
