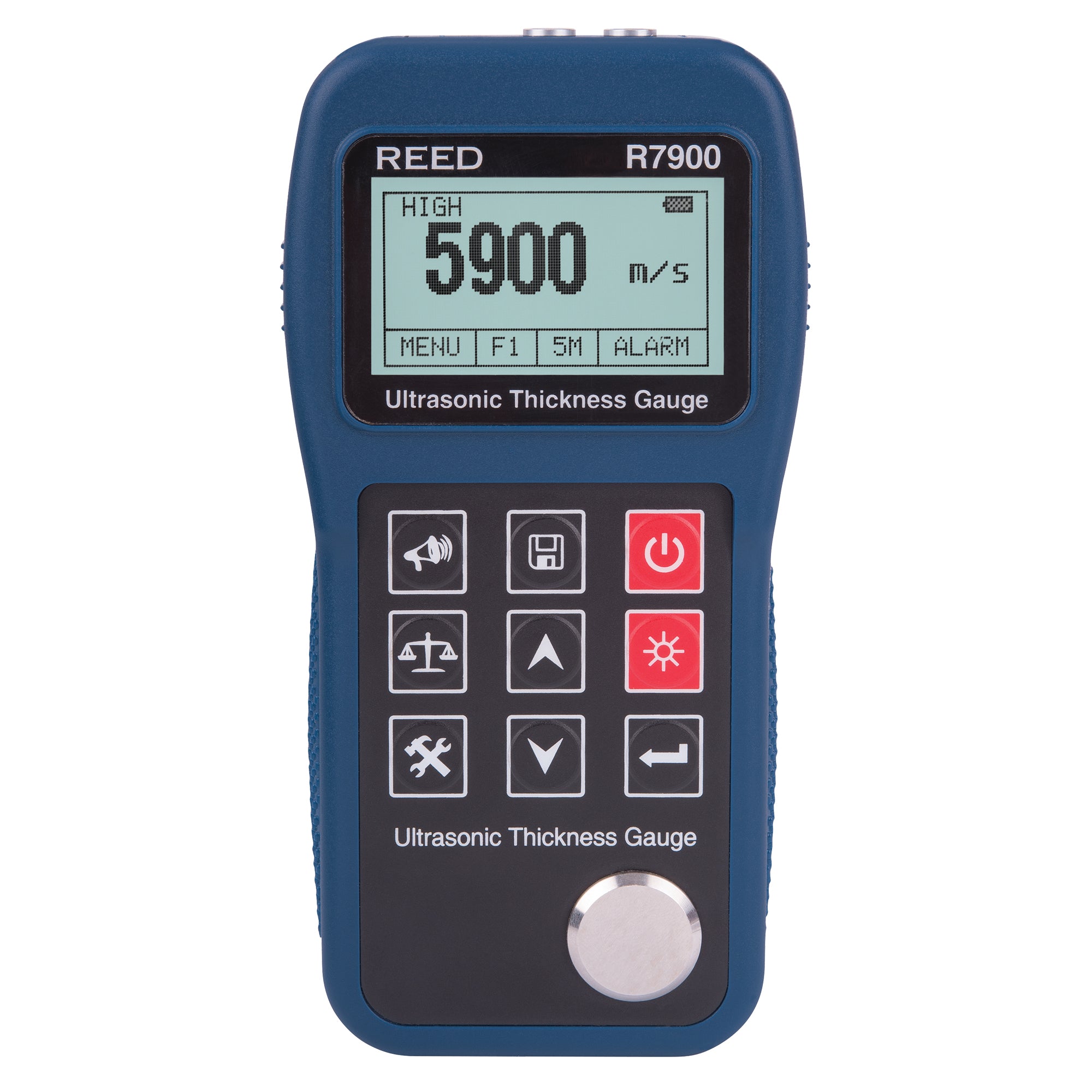

Ultrasonic Thickness Gauge
Regular price
$1,095.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Able to gauge thickness measurement without requiring access to both sides of the test piece
- Determines sample thickness by measuring the amount of time it takes for sound to traverse from the transducer through the material to the back end of a part and back
- Calculates the data based on the speed of the sound through the tested sample
- Capable of performing measurements on a wide range of material including metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials
- Zero function and sound velocity calibration
- Two-point calibration
- Coupling status indicator
- Can be easily deployed, does not require laboratory conditions
- Includes ultrasonic couplant gel, probe, hard carrying case and batteries
| Display | Digital |
| Frequency | 5MHz |
| Measurement Range | 1.2 to 300.0mm (steel) |
| Measurement Speed | 4 per second for a single point measurement |
| Measuring Mode | Ultrasound |
| Memory | 5 files, up to 100 values for each file (total of 500 logs) |
| Power Supply | 2 x 1.5V AA batteries |
| Sound Velocity Range | 1000 to 9999 m/s (0.039 to 0.394 in/µs) |
| Thickness Range | 0.03" - 15.7" (0.65 mm - 400 mm) |
| Packaged cube cu ft | 0.2219 |
|---|---|
| Packaged height ft | 0.6917 |
| Packaged length ft | 1.1667 |
| Packaged weight lbs | 2.718 |
| Packaged width ft | 0.275 |
