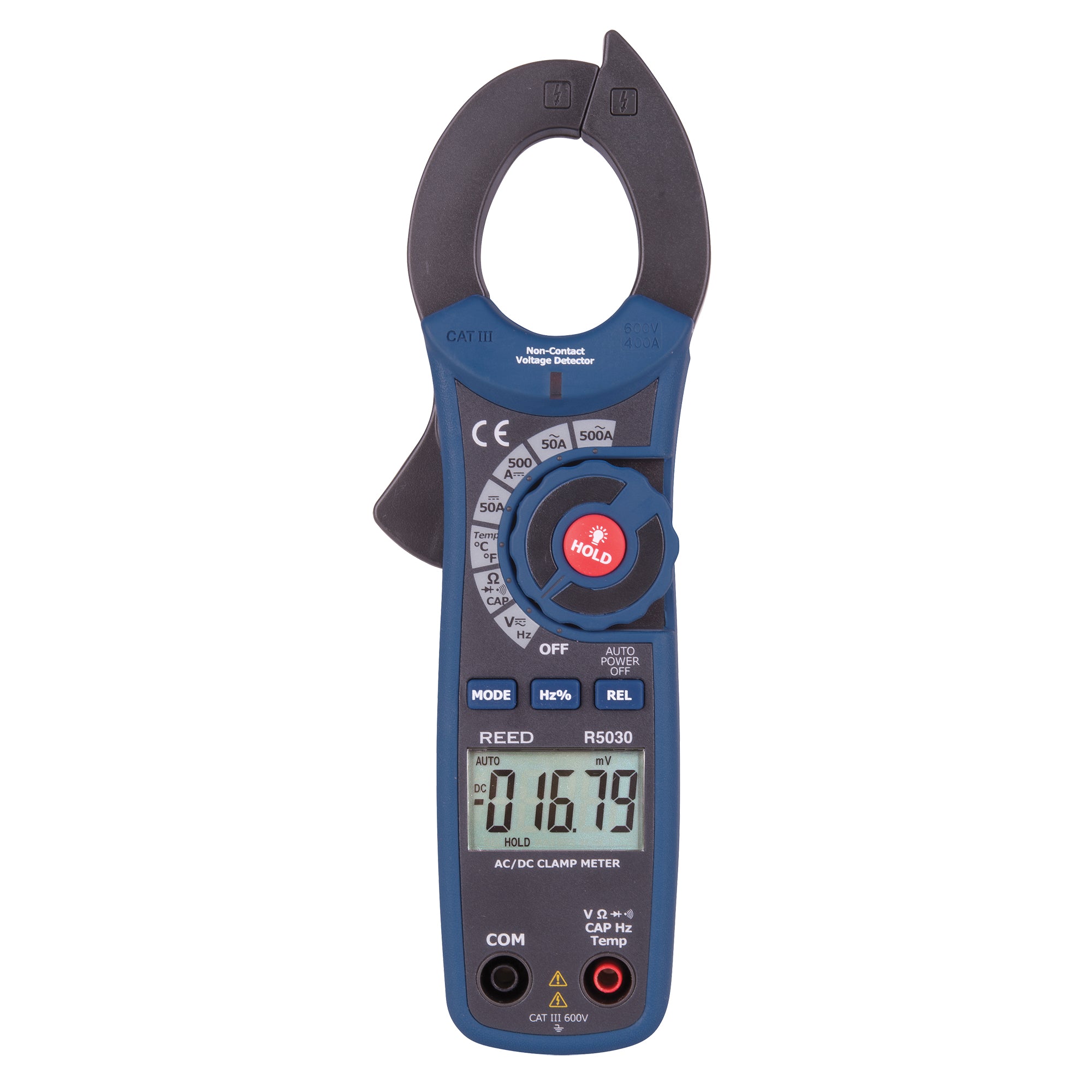

True RMS Clamp Meter

Description

• Measures AC/DC current, AC/DC voltage, resistance, capacitance, frequency, duty cycle, and temperature with a type K thermocouple probe
• True RMS AC measurements
• Non-contact AC voltage detector in clamp tip
• Low battery indication and auto power-off
• 50,000 count LCD with backlight
• Conforms to EN61010 Cat. III 600 V
• Jaw Opening: 1.2" (30 mm)
• Includes set of test leads, temperature probe, batteries, and soft carrying case

AC Voltage Range	500.00 mV, 5.0000, 50.000, 500.00, 750.0 V
AC/DC Current Range	50.00, 500.0 A
Accuracy	AC: ±(2.8% rdg. +30 dgt.);DC: ±(2.5% rdg. +30 dgt.), ±(1.0% rdg. +30 dgt.), ±(0.1% rdg. +4 dgt.), ±(1.0% rdg. +4 dgt.), ±(0.5% rdg. +10 dgt.), ±(3.5% rdg. +10 dgt.)
Capacitance Range	500.00, 5000.0 nF, 50.00, 500.0 μF, 5.000 mF
Current Readings	AC/DC
DC Voltage Range	500.00 mV, 5.0000, 50.000, 500.00, 1000.0 V
Frequency Range	10.000 kHz
Resistance Range	500.00 O, 5.000, 50.000, 500.00 kO, 5.0000, 50.000 MO
Temperature Range	-100.0 to 1000.0 °C/-148.0 to 1832.0 °F
Voltage Readings	AC/DC

Specifications

Packaged cube cu ft	0.0586
Packaged height ft	0.3667
Packaged length ft	0.1917
Packaged weight lbs	0.994
Packaged width ft	0.8333
Shipping time	Ships in 7-10 days
