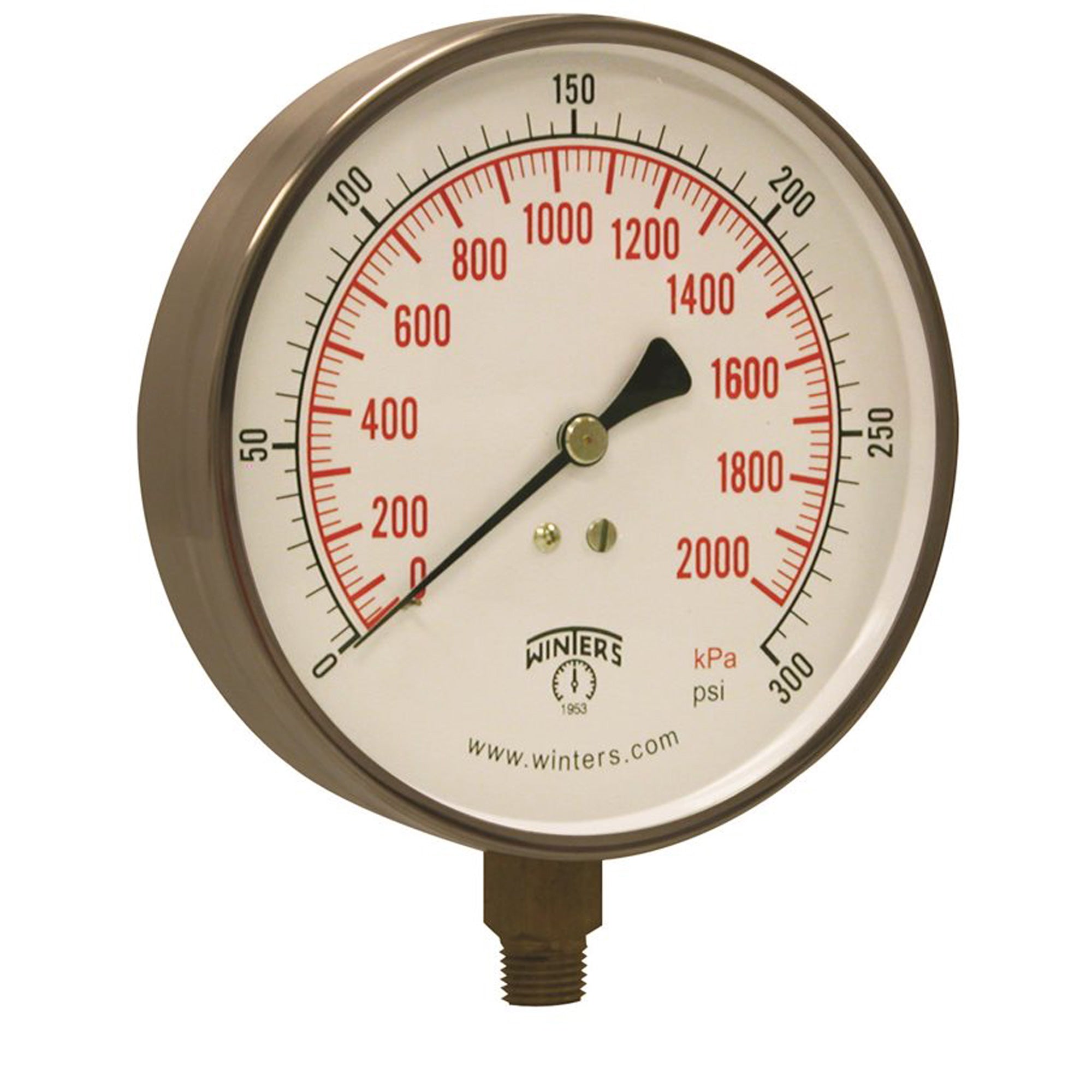

Contractor Pressure Gauge
Regular price
$71.64
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Economical stainless steel case gauge with brass wetted parts
- Zero adjustment screw
- Restricted orifice
- ASME B40.100 compliant and CRN registered
- Also measures in kilopascals (kPa)
- Applications include commercial air, water and steam services (with syphon), and more
| Accuracy | ±1% ANSI/ASME Grade 1A |
| Bourdon Tube Material | Phosphor Bronze |
| Case & Ring Material | 304 Stainless Steel |
| Connection | Bottom Mount |
| Connection Thread | 1/4" NPT |
| Dial Diameter | 4-1/2" |
| Dial Type | Analogue |
| IP Rating | IP52 |
| Lens Material | Acrylic |
| Manufacturer's Warranty | 5 Years |
| Over-Pressure Limit | 25% for Pressures up to 1450 psi (9998 kPa), 15% for Pressures Over 1450 psi (9998 kPa) |
| Working Pressure | Maximum 75% of Full Scale Value |
| Packaged cube cu ft | 0.0263 |
|---|---|
| Packaged height ft | 0.4583 |
| Packaged length ft | 0.4583 |
| Packaged weight lbs | 0.83 |
| Packaged width ft | 0.125 |
Order Processing Orders are processed within 2 business days. Orders placed before 2:00 PM PST typically ship within 2 business days. Orders placed after 2:00 PM PST or on weekends/holidays begin processing the next business day.
Local Pickup — FREE Pick up your order at our Delta warehouse at no charge.
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
0 - 300 psi
HN321
|
|
||
|
30 - 0 - 30 psi
HN322
|
|
