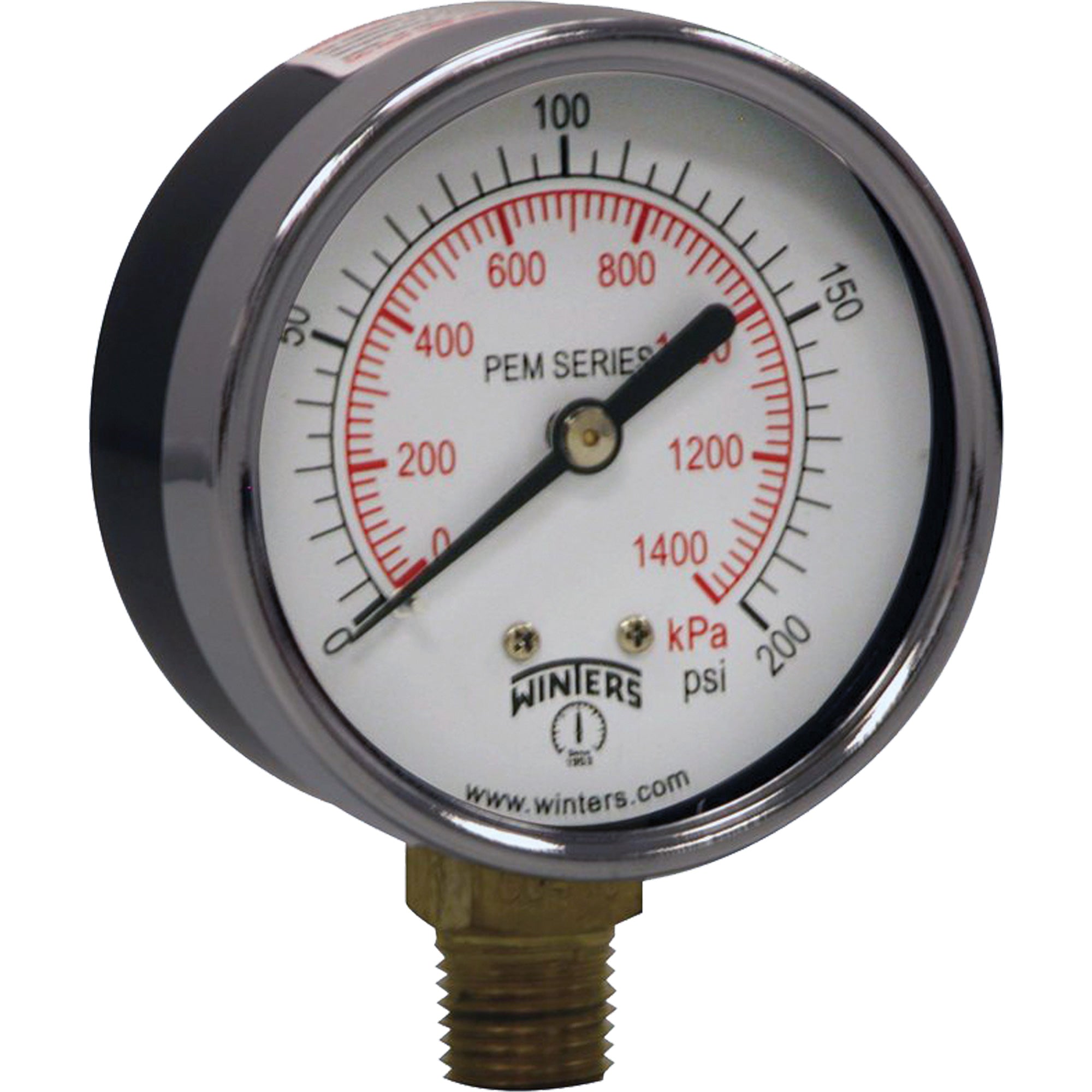

Economy Pressure Gauge
Regular price
$13.71
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- Economical, all-purpose pressure gauge with brass wetted parts
- Friction bezel rings
- Black steel case
- ASME B40.100 compliant and CRN registered
- Also measures in kilopascals (kPa)
- Applications include plumbing, heating, air conditioning, pneumatics, hydraulics, water tanks, air compressors, water systems, and non-clogging and non-corroding media
| Accuracy | ±3-2-3% ANSI/ASME Grade B |
| Ambient/Process Temperature | -40 to 150°F (-40 to 65°C) |
| Bourdon Tube Material | Phosphor Bronze |
| Connection | Bottom Mount |
| Connection Thread | 1/4" NPT |
| Dial Diameter | 2-1/2" |
| Dial Type | Analogue |
| IP Rating | IP52 |
| Manufacturer's Warranty | 5 Years |
| Over-Pressure Limit | 25% of Full Scale Value |
| Pressure Range | 0 - 200 psi |
| Working Pressure | Maximum 75% of Full Scale Value |
| Packaged cube cu ft | 0.0064 |
|---|---|
| Packaged height ft | 0.225 |
| Packaged length ft | 0.2833 |
| Packaged weight lbs | 0.282 |
| Packaged width ft | 0.1 |
