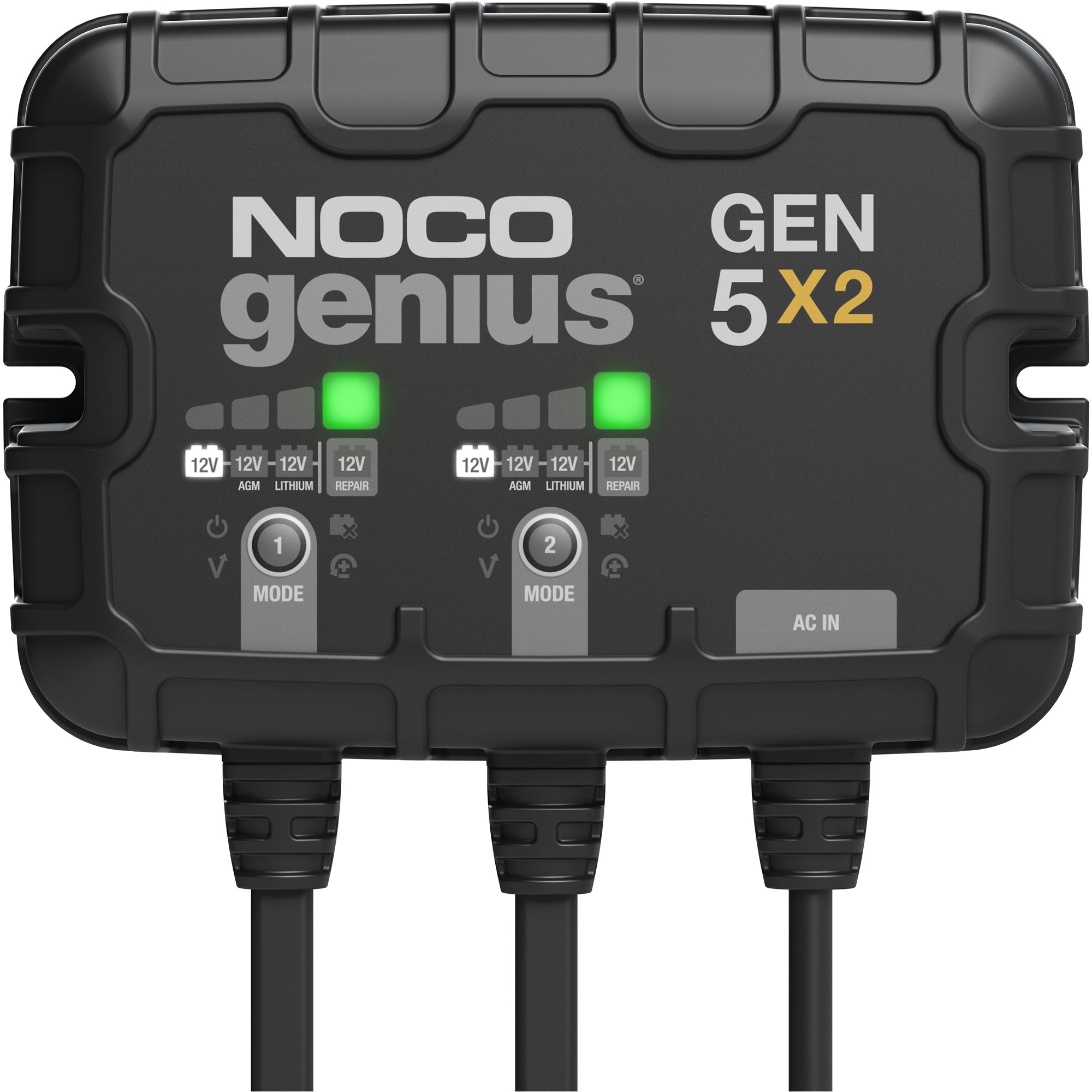

Genius® Gen5X2 2-Bank, 10-Amp On-Board Battery Charger
Regular price
$209.00
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Non-Member Pricing:
This price is for non-members.
Apply for membership here
to access member pricing and benefits.
- A two-bank onboard battery charger rated at 10-amps (5-amps per bank) for 12-volt batteries, including marine, boat, starter, and deep-cycle batteries
- Independently charge and control each battery bank with selectable charging modes - including 12V, 12V AGM, 12V Lithium, and 12V Repair Mode - for all types of lead-acid and lithium-ion batteries
- Fully-sealed, 100% waterproof and designed to withstand hours underwater
- The GEN5X2 is an on-board charger built for extreme conditions with an ingress protection rating of IP68
- The GEN5X1 uses high-frequency switch-mode technology to efficiently convert A/C power into safe D/C power for battery charging
- Its onboard microcomputer precisely controls the charging to minimize power loss to create an incredibly compact form factor
- Effortlessly charge 12-volt lead-acid and lithium-ion batteries of multiple chemistries (Flooded, gel, maintenance-free and AGM batteries) and types (Starter, deep-cycle, marine, and more)
- A simplified mounting system allows for quick and easy installations in any direction - even up-side-down - with an integrated anti-vibration backing to isolate shock, vibration, and noise
- The all-new start-voltage sensor allows the Genius GEN charger to detect and charge dead batteries as low as 1-volt
- For extremely dead batteries lower than 1-volt, manually turn on force mode to detect and charge batteries all the way down to zero volts
- The new integrated thermal sensor automatically monitors and adjusts the charging cycle based on fluctuations of ambient temperature, limiting the chance of under-charging or over-charging, providing a more accurate and fully charged battery
- Avoids under-charging in cold weather down to -4F and avoids over-charging in hot weather up to 104F
- Automatically detects sulfation/acid stratification
| Charging Capacity Range | Up to 120 Amp-Hours |
| Charging Current | 5 Amps DC x 2 Banks |
| Charging Voltages | 12 Volts |
| Dimensions | 4.84" H x 7" W x 2.2" D |
| Frequency | 50Hz to 60Hz |
| Includes | (1) GEN5X2 On-Board Battery Charger; (2) Self-Tapping Screws; (1) User Guide & Warranty Information |
| Line Voltage | 120V to 240V AC |
| Operating Temperature | -4° to 104°F(-20° to 40°C) |
| Power Consumption | 72 Watts x 2 Banks (140 Watts Max) |
| Packaged cube cu ft | 0.2309 |
|---|---|
| Packaged height ft | 0.4667 |
| Packaged length ft | 0.7917 |
| Packaged weight lbs | 5.562 |
| Packaged width ft | 0.625 |
